Series 9000 WP 6000PSI
JIC Male/NPT Female 6K
STANDARD
ISO8434-2 and ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

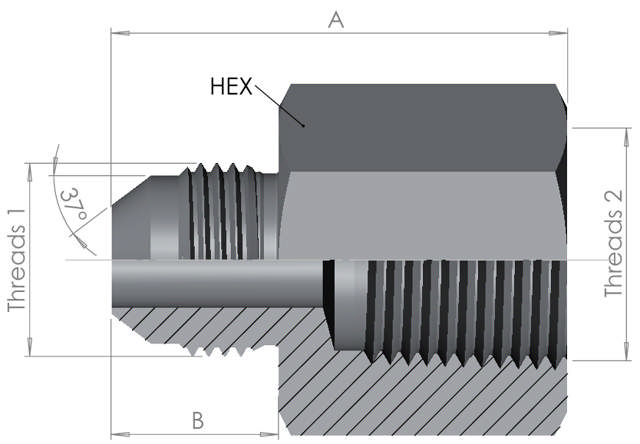

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| 90000704316 | 7/16"-20UN | 1/4"NPT | 35 | 14.5 | 19 | SS316 | 6000PSI | |
| 90000904316 | 9/16"-18UN | 1/4"NPT | 35 | 14.5 | 19 | SS316 | 6000PSI | |
| 90000906316 | 9/16"-18UN | 3/8"NPT | 37 | 14.5 | 22 | SS316 | 6000PSI | |
| 90001206316 | 3/4"-16UN | 3/8"NPT | 39 | 16.5 | 22 | SS316 | 6000PSI | |
| 90001208316 | 3/4"-16UN | 1/2"NPT | 45 | 16.5 | 30 | SS316 | 6000PSI | |
| 90001712316 | 1 1/16"-12UN | 3/4"NPT | 52 | 22 | 36 | SS316 | 6000PSI | |
| 90002116316 | 1 5/16"-12UN | 1"NPT | 60 | 23 | 46 | SS316 | 6000PSI | |
| 90002620316 | 1 5/8"-12UN | 1 1/4"NPT | 62 | 24.5 | 55 | SS316 | 6000PSI | |
| 90003024316 | 1 7/8"-12UN | 1 1/2"NPT | 66 | 27.5 | 60 | SS316 | 6000PSI | |
| 90004032316 | 2 1/2"-12UN | 2"NPT | 79 | 34 | 75 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
