Series 8700 WP 6000PSI
JIC Male/UN (SAE) Male 6K
STANDARD
ISO8434-2 and ISO11926-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

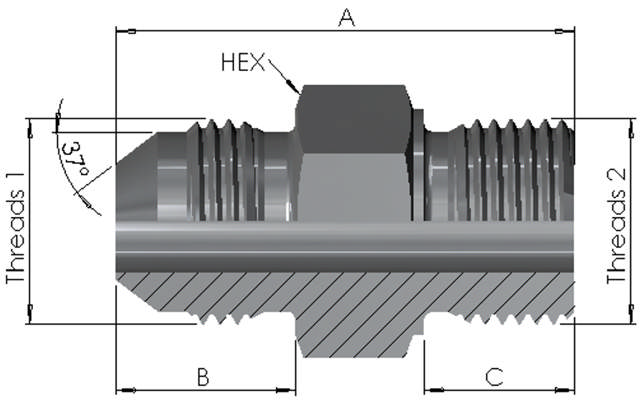

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 87000707316 | 7/16"-20UN | 7/16"-20UN | 34 | 14.5 | 10 | 17 | SS316 | 6000PSI | |
| 87000709316 | 7/16"-20UN | 9/16"-18UN | 34 | 14.5 | 10 | 19 | SS316 | 6000PSI | |
| 87000907316 | 9/16"-18UN | 7/16"-20UN | 34 | 14.5 | 10 | 17 | SS316 | 6000PSI | |
| 87000909316 | 9/16"-18UN | 9/16"-18UN | 34 | 14.5 | 10 | 19 | SS316 | 6000PSI | |
| 87000912316 | 9/16"-18UN | 3/4"-16UN | 37 | 14.5 | 12 | 24 | SS316 | 6000PSI | |
| 87001209316 | 3/4"-16UN | 9/16"-18UN | 37 | 16.5 | 10 | 22 | SS316 | 6000PSI | |
| 87001212316 | 3/4"-16UN | 3/4"-16UN | 39 | 16.5 | 12 | 24 | SS316 | 6000PSI | |
| 87001214316 | 3/4"-16UN | 7/8"-14UN | 40 | 16.5 | 13 | 27 | SS316 | 6000PSI | |
| 87001412316 | 7/8"-14UN | 3/4"-16UN | 43 | 20 | 12 | 24 | SS316 | 6000PSI | |
| 87001414316 | 7/8"-14UN | 7/8"-14UN | 44 | 20 | 13 | 27 | SS316 | 6000PSI | |
| 87001417316 | 7/8"-14UN | 1 1/16"-12UN | 48 | 20 | 16 | 32 | SS316 | 6000PSI | |
| 87001714316 | 1 1/16"-12UN | 7/8"-14UN | 47 | 22 | 13 | 30 | SS316 | 6000PSI | |
| 87001717316 | 1 1/16"-12UN | 1 1/16"-12UN | 50 | 22 | 16 | 32 | SS316 | 6000PSI | |
| 87001721316 | 1 1/16"-12UN | 1 5/16"-12UN | 50 | 22 | 16 | 41 | SS316 | 6000PSI | |
| 87002117316 | 1 5/16"-12UN | 1 1/16"-12UN | 50 | 23 | 16 | 36 | SS316 | 6000PSI | |
| 87002121316 | 1 5/16"-12UN | 1 5/16"-12UN | 50 | 23 | 16 | 41 | SS316 | 6000PSI | |
| 87002126316 | 1 5/16"-12UN | 1 5/8"-12UN | 53 | 22 | 18 | 50 | SS316 | 6000PSI | |
| 87002621316 | 1 5/8"-12UN | 1 5/16"-12UN | 54 | 24.5 | 16 | 46 | SS316 | 6000PSI | |
| 87002626316 | 1 5/8"-12UN | 1 5/8"-12UN | 56 | 24.5 | 18 | 50 | SS316 | 6000PSI | |
| 87002630316 | 1 5/8"-12UN | 1 7/8"-12UN | 55 | 24.5 | 18 | 55 | SS316 | 6000PSI | |
| 87003026316 | 1 7/8"-12UN | 1 5/8"-12UN | 59 | 27.5 | 18 | 50 | SS316 | 6000PSI | |
| 87003030316 | 1 7/8"-12UN | 1 7/8"-12UN | 58 | 27.5 | 18 | 55 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
