Series 8431 WP 6000PSI

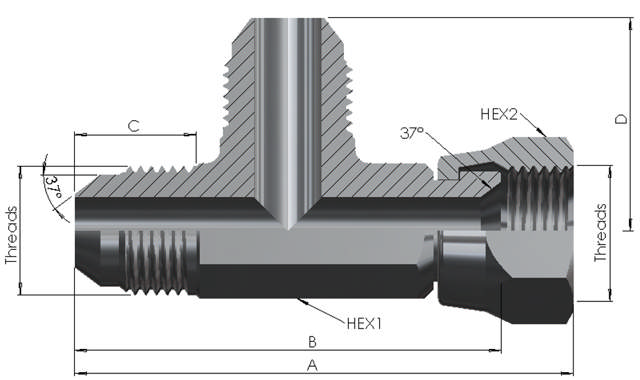

JIC Male/Male/Female Swivel Run Tee 6K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | A | B | C | D | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 84310707316 | 7/16"-20UN | 53 | 34.5 | 14.5 | 26.5 | 16 | 17 | SS316 | 6000PSI | |
| 84310909316 | 9/16"-18UN | 53 | 35.5 | 14.5 | 26.5 | 16 | 19 | SS316 | 6000PSI | |
| 84311212316 | 3/4"-16UN | 63 | 41.5 | 16.5 | 31.5 | 20 | 24 | SS316 | 6000PSI | |
| 84311414316 | 7/8"-14UN | 73 | 47.5 | 20 | 36.5 | 23 | 27 | SS316 | 6000PSI | |
| 84311717316 | 1 1/16"-12UN | 83 | 55.5 | 22 | 41.5 | 28 | 32 | SS316 | 6000PSI | |
| 84312121316 | 1 5/16"-12UN | 94 | 61 | 23 | 47 | 34 | 41 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
