Series 8600 WP 6000PSI

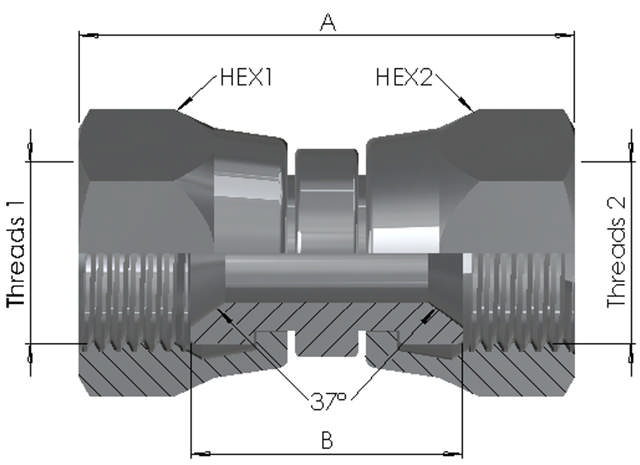

JIC Female/Female Swivel 6K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 86000707316 | 7/16"-20UN | 7/16"-20UN | 37 | 21 | 17 | 17 | SS316 | 6000PSI | |
| 86000708316 | 7/16"-20UN | 1/2"-20UN | 37 | 21 | 17 | 17 | SS316 | 6000PSI | |
| 86000709316 | 7/16"-20UN | 9/16"-18UN | 39 | 22 | 17 | 19 | SS316 | 6000PSI | |
| 86000712316 | 7/16"-20UN | 3/4"-16UN | 42 | 22 | 17 | 24 | SS316 | 6000PSI | |
| 86000808316 | 1/2"-20UN | 1/2"-20UN | 37 | 21 | 17 | 17 | SS316 | 6000PSI | |
| 86000809316 | 1/2"-20UN | 9/16"-18UN | 39 | 22 | 17 | 19 | SS316 | 6000PSI | |
| 86000909316 | 9/16"-18UN | 9/16"-18UN | 41 | 23 | 19 | 19 | SS316 | 6000PSI | |
| 86000912316 | 9/16"-18UN | 3/4"-16UN | 42 | 23 | 19 | 24 | SS316 | 6000PSI | |
| 86000914316 | 9/16"-18UN | 7/8"-14UN | 46 | 25 | 19 | 27 | SS316 | 6000PSI | |
| 86001212316 | 3/4"-16UN | 3/4"-16UN | 46 | 26 | 24 | 24 | SS316 | 6000PSI | |
| 86001214316 | 3/4"-16UN | 7/8"-14UN | 49 | 27 | 24 | 27 | SS316 | 6000PSI | |
| 86001217316 | 3/4"-16UN | 1 1/16"-12UN | 50 | 26 | 24 | 32 | SS316 | 6000PSI | |
| 86001414316 | 7/8"-14UN | 7/8"-14UN | 52 | 28 | 27 | 27 | SS316 | 6000PSI | |
| 86001417316 | 7/8"-14UN | 1 1/16"-12UN | 53 | 27 | 27 | 32 | SS316 | 6000PSI | |
| 86001717316 | 1 1/16"-12UN | 1 1/16"-12UN | 62 | 34 | 32 | 32 | SS316 | 6000PSI | |
| 86001721316 | 1 1/16"-12UN | 1 5/16"-12UN | 61 | 32 | 32 | 38 | SS316 | 6000PSI | |
| 86002121316 | 1 5/16"-12UN | 1 5/16"-12UN | 64 | 34 | 41 | 41 | SS316 | 6000PSI | |
| 86002126316 | 1 5/16"-12UN | 1 5/8"-12UN | 66 | 33 | 41 | 41 | SS316 | 6000PSI | |
| 86002626316 | 1 5/8"-12UN | 1 5/8"-12UN | 70 | 38 | 50 | 50 | SS316 | 6000PSI | |
| 86002630316 | 1 5/8"-12UN | 1 7/8"-12UN | 73 | 38 | 50 | 55 | SS316 | 6000PSI | |
| 86003030316 | 1 7/8"-12UN | 1 7/8"-12UN | 78 | 42 | 55 | 55 | SS316 | 6000PSI | |
| 86004040316 | 2 1/2"-12UN | 2 1/2"-12UN | 96 | 50 | 75 | 75 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
