Series 8501 WP 6000PSI
JIC 37° Triple-Lock Sleeves Imperial
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

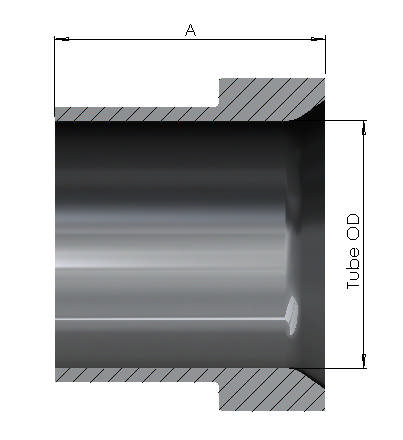

| Product Code | Tube Inches | Nut Size | A | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|
| 85010404316 | 1/4" | 7/16"-20 | 10.4 | SS316 | 6000PSI | |
| 85010606316 | 3/8" | 9/16"-18 | 12.7 | SS316 | 6000PSI | |
| 85010808316 | 1/2" | 3/4"-16 | 14 | SS316 | 6000PSI | |
| 85011212316 | 3/4" | 1 1/16"-12 | 17 | SS316 | 6000PSI | |
| 85011616316 | 1" | 1 5/16"-12 | 20 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
