Series 8510 WP 6000PSI

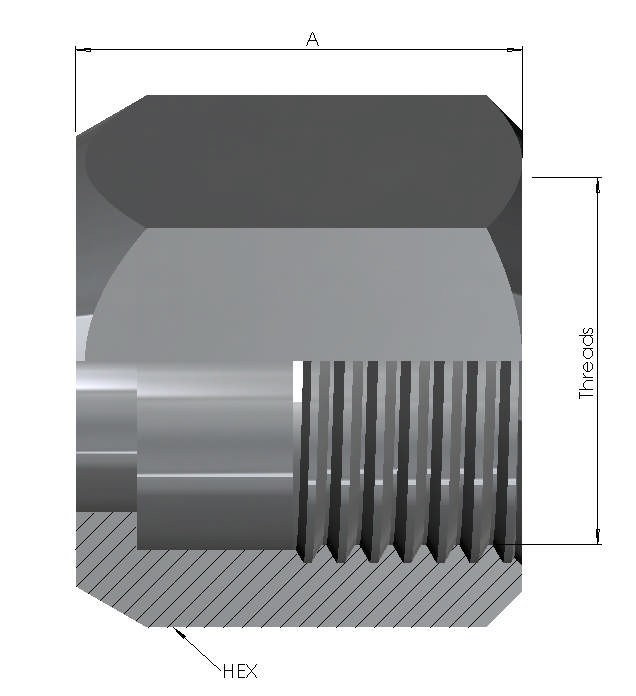

JIC 37° Triple-Lock Nut
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Tube Metric 1 | Tube Inches | Thread Dim 1 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| 85100707316 | 6mm | 1/4" | 7/16"-20UN | 15.5 | 14 | SS316 | 6000PSI | |
| 85100808316 | 8mm | 1/2"-20UN | 17 | 17 | SS316 | 6000PSI | ||
| 85100909316 | 10mm | 3/8" | 9/16"-18UN | 18.3 | 19 | SS316 | 6000PSI | |
| 85101212316 | 12mm | 1/2" | 3/4"-16UN | 21.3 | 22 | SS316 | 6000PSI | |
| 85101414316 | 14/15/16mm | 7/8"-14UN | 24.5 | 27 | SS316 | 6000PSI | ||
| 85101717316 | 18/20mm | 3/4" | 1 1/16"-12UN | 26 | 32 | SS316 | 6000PSI | |
| 85102121316 | 22/25mm | 1" | 1 5/16"-12UN | 28.5 | 38 | SS316 | 6000PSI | |
| 85102626316 | 30mm | 1 5/8"-12UN | 31 | 50 | SS316 | 6000PSI | ||
| 85103030316 | 38mm | 1 7/8"-12UN | 36 | 55 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
