Series 7300 WP 6000PSI

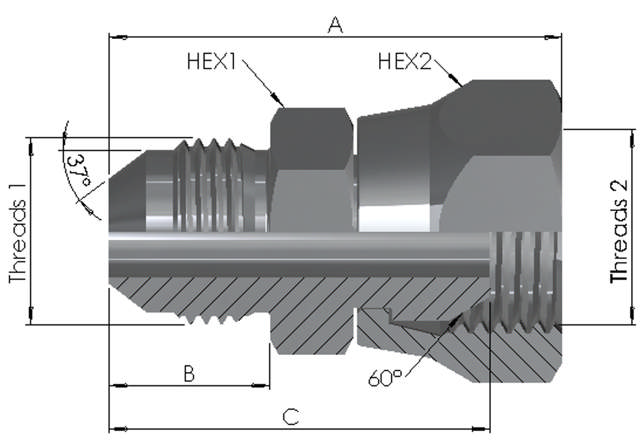

JIC Male/BSP Female Swivel 6K
STANDARD
ISO 8434-2 and ISO1179 / BS5200
DEFAULT MATERIAL
Also available in
Aisi316L
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Hex 2 | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| 73000704316 | 7/16"-20UN | G 1/4" | 38.5 | 14.5 | 32 | 14 | 19 | |
| 73000804316 | 1/2"-20UN | G 1/4" | 38.5 | 14.5 | 32 | 14 | 19 | |
| 73000904316 | 9/16"-18UN | G 1/4" | 32 | 14.5 | 41 | 17 | 19 | |
| 73000906316 | 9/16"-18UN | G 3/8" | 42.5 | 14.5 | 36 | 17 | 22 | |
| 73000908316 | 9/16"-18UN | G 1/2" | 44 | 14.5 | 37 | 19 | 27 | |
| 73001204316 | 3/4"-16UN | G 1/4" | 41 | 16.5 | 34.5 | 22 | 19 | |
| 73001206316 | 3/4"-16UN | G 3/8" | 44.5 | 16.5 | 38 | 22 | 22 | |
| 73001208316 | 3/4"-16UN | G 1/2" | 47 | 16.5 | 39 | 22 | 27 | |
| 73001408316 | 7/8"-14UN | G 1/2" | 49.5 | 19.5 | 41.5 | 24 | 27 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
