Series 5530 WP 6000PSI
BSP Male Tee 6K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

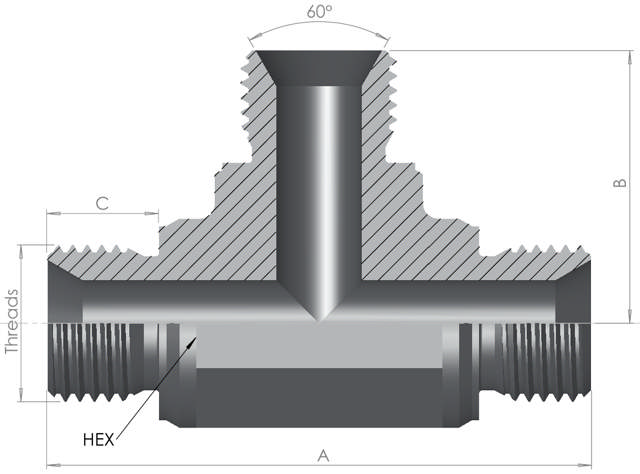

| Product Code | Thread Dim 1 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| 55300404316 | G 1/4" | 53 | 26 | 11 | 20 | SS316 | 6000PSI | |
| 55300606316 | G 3/8" | 63 | 31.5 | 12.5 | 23 | SS316 | 6000PSI | |
| 55300808316 | G 1/2" | 74 | 37 | 15 | 28 | SS316 | 6000PSI | |
| 55301212316 | G 3/4" | 94 | 47 | 16 | 34 | SS316 | 6000PSI | |
| 55301616316 | G 1" | 108 | 54 | 19 | 44 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
