Series 5590 WP 6000PSI

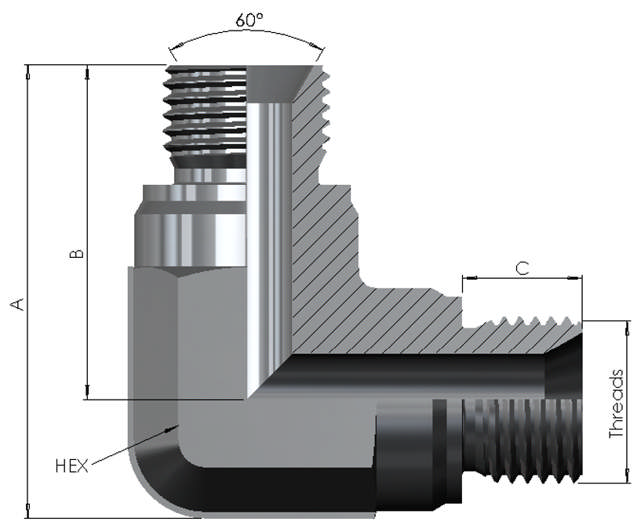

BSP Male/Male Elbow 90° 6K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 55900404316 | G 1/4" | G 1/4" | 35 | 25 | 11 | 20 | SS316 | 6000PSI | |
| 55900606316 | G 3/8" | G 3/8" | 43 | 31.5 | 12.5 | 23 | SS316 | 6000PSI | |
| 55900808316 | G 1/2" | G 1/2" | 51 | 37 | 15 | 28 | SS316 | 6000PSI | |
| 55901212316 | G 3/4" | G 3/4" | 64 | 47 | 16 | 34 | SS316 | 6000PSI | |
| 55901616316 | G 1" | G 1" | 76 | 54 | 19 | 44 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
