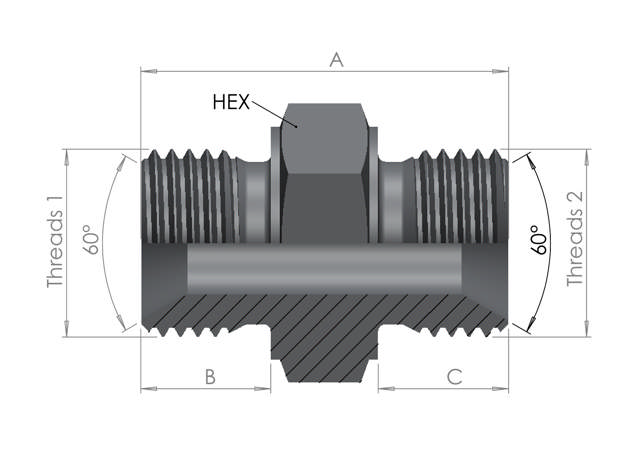

Series 5500 WP 6000PSI
BSP Male/Male 6K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 55000202316 | G 1/8" | G 1/8" | 27.5 | 8.5 | 8.5 | 14 | SS316 | 6000PSI | |
| 55000204316 | G 1/8" | G 1/4" | 30 | 8.5 | 11.5 | 19 | SS316 | 6000PSI | |
| 55000206316 | G 1/8" | G 3/8" | 32 | 8.5 | 12.5 | 22 | SS316 | 6000PSI | |
| 55000208316 | G 1/8" | G 1/2" | 35 | 8.5 | 15 | 27 | SS316 | 6000PSI | |
| 55000404316 | G 1/4" | G 1/4" | 33 | 11 | 11 | 19 | SS316 | 6000PSI | |
| 55000406316 | G 1/4" | G 3/8" | 35 | 11 | 12.5 | 22 | SS316 | 6000PSI | |
| 55000408316 | G 1/4" | G 1/2" | 37 | 11 | 15 | 27 | SS316 | 6000PSI | |
| 55000606316 | G 3/8" | G 3/8" | 36 | 12.5 | 12.5 | 22 | SS316 | 6000PSI | |
| 55000608316 | G 3/8" | G 1/2" | 39 | 12.5 | 15 | 27 | SS316 | 6000PSI | |
| 55000610316 | G 3/8" | G 5/8" | 41 | 12.5 | 16 | 30 | SS316 | 6000PSI | |
| 55000612316 | G 3/8" | G 3/4" | 42 | 12.5 | 16 | 32 | SS316 | 6000PSI | |
| 55000808316 | G 1/2" | G 1/2" | 41 | 15 | 15 | 27 | SS316 | 6000PSI | |
| 55000810316 | G 1/2" | G 5/8" | 44 | 15 | 16 | 30 | SS316 | 6000PSI | |
| 55000812316 | G 1/2" | G 3/4" | 45 | 15 | 16 | 32 | SS316 | 6000PSI | |
| 55000816316 | G 1/2" | G 1" | 50 | 15 | 19 | 41 | SS316 | 6000PSI | |
| 55001010316 | G 5/8" | G 5/8" | 45 | 16 | 16 | 30 | SS316 | 6000PSI | |
| 55001012316 | G 5/8" | G 3/4" | 46 | 16 | 16 | 32 | SS316 | 6000PSI | |
| 55001212316 | G 3/4" | G 3/4" | 46 | 16 | 16 | 32 | SS316 | 6000PSI | |
| 55001216316 | G 3/4" | G 1" | 51 | 16 | 19 | 41 | SS316 | 6000PSI | |
| 55001220316 | G 3/4" | G 1 1/4" | 54 | 16 | 21 | 50 | SS316 | 6000PSI | |
| 55001616316 | G 1" | G 1" | 54 | 19 | 19 | 41 | SS316 | 6000PSI | |
| 55001620316 | G 1" | G 1 1/4" | 57 | 19 | 21 | 50 | SS316 | 6000PSI | |
| 55001624316 | G 1" | G 1 1/2" | 59 | 19 | 22 | 55 | SS316 | 6000PSI | |
| 55002020316 | G 1 1/4" | G 1 1/4" | 59 | 21 | 21 | 50 | SS316 | 6000PSI | |
| 55002024316 | G 1 1/4" | G 1 1/2" | 61 | 21 | 22 | 55 | SS316 | 6000PSI | |
| 55002424316 | G 1 1/2" | G 1 1/2" | 62 | 22 | 22 | 55 | SS316 | 6000PSI | |
| 55002432316 | G 1 1/2" | G 2" | 66 | 22 | 25 | 70 | SS316 | 6000PSI | |
| 55003232316 | G 2" | G 2" | 69 | 25 | 25 | 70 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
