Series 6200 WP 6000PSI
BSP Male/Female Swivel 6K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

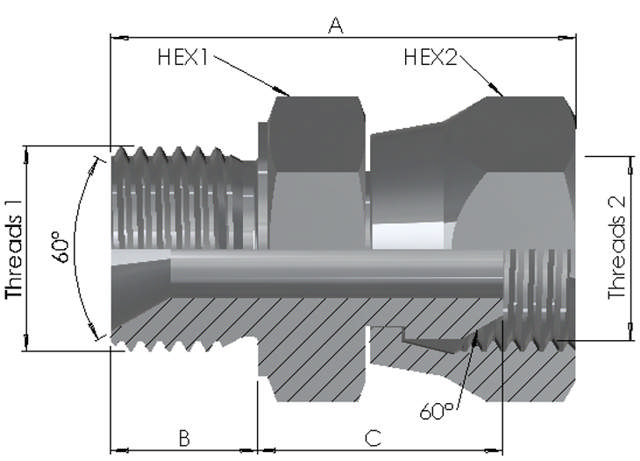

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 62000404316 | G 1/4" | G 1/4" | 36.5 | 11 | 19 | 19 | 19 | SS316 | 6000PSI | |
| 62000406316 | G 1/4" | G 3/8" | 40 | 11 | 22.5 | 19 | 22 | SS316 | 6000PSI | |
| 62000604316 | G 3/8" | G 1/4" | 39 | 12.5 | 19.5 | 22 | 19 | SS316 | 6000PSI | |
| 62000606316 | G 3/8" | G 3/8" | 42.5 | 12.5 | 23 | 22 | 22 | SS316 | 6000PSI | |
| 62000608316 | G 3/8" | G 1/2" | 44 | 12.5 | 23 | 22 | 27 | SS316 | 6000PSI | |
| 62000806316 | G 1/2" | G 3/8" | 45.5 | 15 | 24 | 27 | 22 | SS316 | 6000PSI | |
| 62000808316 | G 1/2" | G 1/2" | 47 | 15 | 25 | 27 | 27 | SS316 | 6000PSI | |
| 62000810316 | G 1/2" | G 5/8" | 47.5 | 15 | 24 | 27 | 30 | SS316 | 6000PSI | |
| 62000812316 | G 1/2" | G 3/4" | 50 | 15 | 25 | 27 | 32 | SS316 | 6000PSI | |
| 62001008316 | G 5/8" | G 1/2" | 49 | 16 | 26 | 30 | 27 | SS316 | 6000PSI | |
| 62001010316 | G 5/8" | G 5/8" | 49.5 | 16 | 25 | 30 | 30 | SS316 | 6000PSI | |
| 62001012316 | G 5/8" | G 3/4" | 52 | 16 | 26 | 30 | 32 | SS316 | 6000PSI | |
| 62001208316 | G 3/4" | G 1/2" | 51 | 16 | 27 | 32 | 27 | SS316 | 6000PSI | |
| 62001210316 | G 3/4" | G 5/8" | 51.5 | 16 | 26 | 32 | 30 | SS316 | 6000PSI | |
| 62001212316 | G 3/4" | G 3/4" | 54 | 16 | 27 | 32 | 32 | SS316 | 6000PSI | |
| 62001216316 | G 3/4" | G 1" | 54 | 16 | 27 | 32 | 41 | SS316 | 6000PSI | |
| 62001612316 | G 1" | G 3/4" | 58 | 19 | 29 | 41 | 32 | SS316 | 6000PSI | |
| 62001616316 | G 1" | G 1" | 58 | 19 | 29 | 41 | 41 | SS316 | 6000PSI | |
| 62002020316 | G 1 1/4" | G 1 1/4" | 67 | 22 | 31.5 | 50 | 50 | SS316 | 6000PSI | |
| 62002424316 | G 1 1/2" | G 1 1/2" | 71 | 22 | 36.5 | 55 | 55 | SS316 | 6000PSI | |
| 62003232316 | G 2" | G 2" | 82 | 26 | 40 | 70 | 70 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
