Series 6430 WP 10000PSI
BSP Female Swivel Tee 6K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

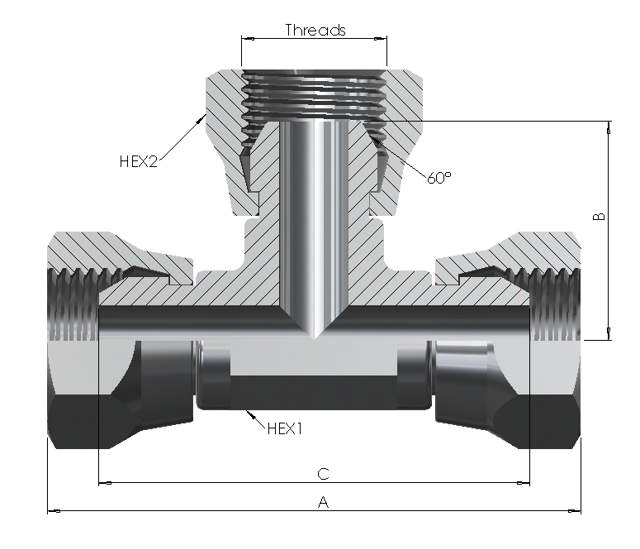

| Product Code | Thread Dim 1 | A | B | C | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 64300404316 | G 1/4" | 66 | 26.5 | 53 | 16 | 19 | SS316 | 6000PSI | |
| 64300606316 | G 3/8" | 66 | 26.5 | 53 | 16 | 22 | SS316 | 6000PSI | |
| 64300808316 | G 1/2" | 77 | 31.5 | 63 | 20 | 27 | SS316 | 6000PSI | |
| 64301212316 | G 3/4" | 103 | 41.5 | 83 | 28 | 32 | SS316 | 6000PSI | |
| 64301616316 | G 1" | 114 | 47 | 94 | 34 | 41 | SS316 | 6000PSI | |
| 64302020316 | G 1 1/4" | 130 | 52.5 | 105 | 44 | 50 | SS316 | 6000PSI | |
| 64302424316 | G 1 1/2" | 146 | 60 | 120 | 52 | 55 | SS316 | 6000PSI | |
| 64303232316 | G 2" | 174 | 71 | 142 | 62 | 70 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
