Series 6490 WP 6000PSI

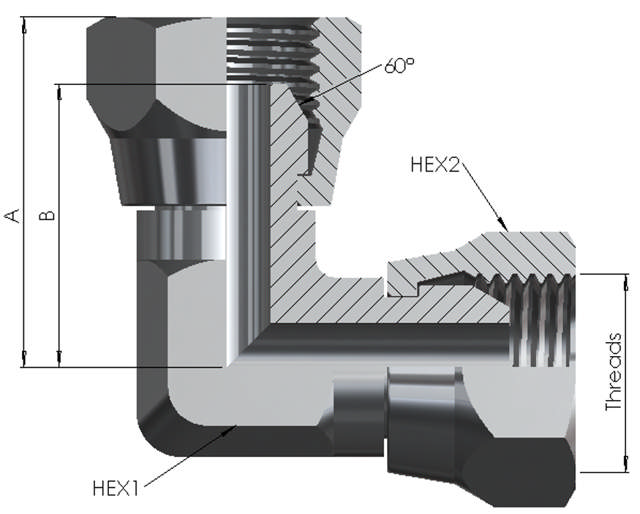

BSP Female/Female Swivel Elbow 90° 6K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 64900404316 | G 1/4" | G 1/4" | 33 | 26.5 | 16 | 19 | SS316 | 6000PSI | |
| 64900606316 | G 3/8" | G 3/8" | 33 | 26.5 | 16 | 22 | SS316 | 6000PSI | |
| 64900808316 | G 1/2" | G 1/2" | 38.5 | 31.5 | 20 | 27 | SS316 | 6000PSI | |
| 64901212316 | G 3/4" | G 3/4" | 51.5 | 41.5 | 28 | 32 | SS316 | 6000PSI | |
| 64901616316 | G 1" | G 1" | 57 | 47 | 34 | 41 | SS316 | 6000PSI | |
| 64902020316 | G 1 1/4" | G 1 1/4" | 65 | 52.5 | 44 | 50 | SS316 | 6000PSI | |
| 64902424316 | G 1 1/2" | G 1 1/2" | 57 | 60 | 52 | 55 | SS316 | 6000PSI | |
| 64903232316 | G 2" | G 2" | 57 | 71 | 62 | 70 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
