Series 6400 WP 6000PSI
BSP Female/Female Swivel 6K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

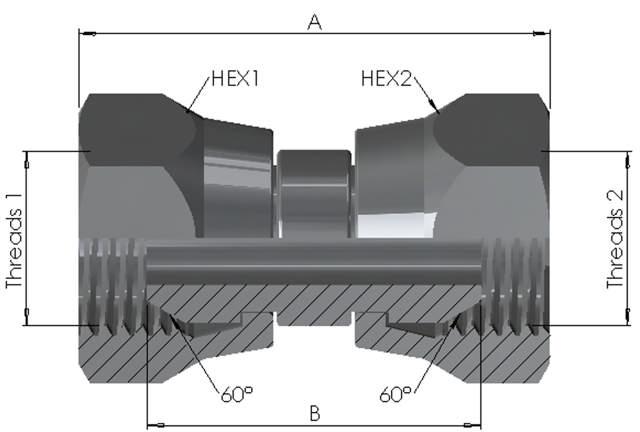

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 64000404316 | G 1/4" | G 1/4" | 37 | 24 | 19 | 19 | SS316 | 6000PSI | |
| 64000406316 | G 1/4" | G 3/8" | 42.5 | 29.5 | 19 | 22 | SS316 | 6000PSI | |
| 64000606316 | G 3/8" | G 3/8" | 46 | 33 | 22 | 22 | SS316 | 6000PSI | |
| 64000608316 | G 3/8" | G 1/2" | 48.5 | 35 | 22 | 27 | SS316 | 6000PSI | |
| 64000808316 | G 1/2" | G 1/2" | 50 | 36 | 27 | 27 | SS316 | 6000PSI | |
| 64000812316 | G 1/2" | G 3/4" | 55 | 38 | 27 | 32 | SS316 | 6000PSI | |
| 64001212316 | G 3/4" | G 3/4" | 58 | 38 | 32 | 32 | SS316 | 6000PSI | |
| 64001216316 | G 3/4" | G 1" | 58 | 38 | 32 | 41 | SS316 | 6000PSI | |
| 64001616316 | G 1" | G 1" | 58 | 38 | 41 | 41 | SS316 | 6000PSI | |
| 64002020316 | G 1 1/4" | G 1 1/4" | 67 | 42 | 50 | 50 | SS316 | 6000PSI | |
| 64002424316 | G 1 1/2" | G 1 1/2" | 77 | 51 | 55 | 55 | SS316 | 6000PSI | |
| 64003232316 | G 2" | G 2" | 86 | 54 | 70 | 70 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
