Series 9590 WP 15000PSI
NPT Female/Female Elbow 90° 15K
STANDARD
ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

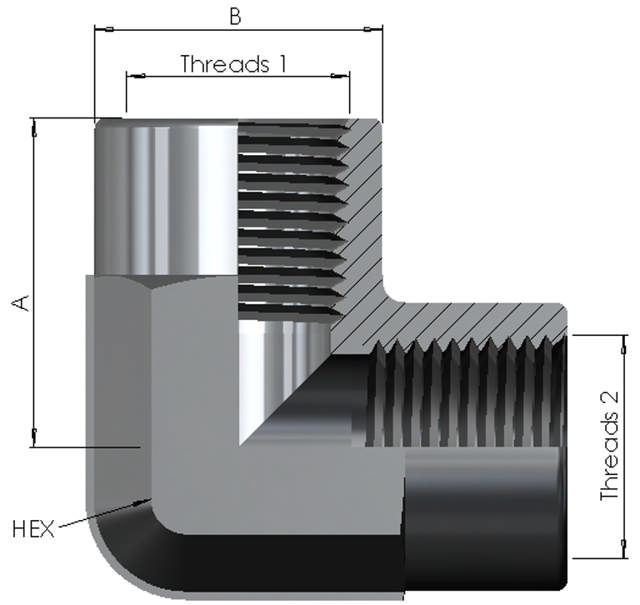

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| 9590040431615K | 1/4"NPT | 1/4"NPT | 26.5 | 23 | 23 | SS316 | 15000PSI | |
| 9590060631615K | 3/8"NPT | 3/8"NPT | 32 | 28 | 28 | SS316 | 15000PSI | |
| 9590080831615K | 1/2"NPT | 1/2"NPT | 37 | 34 | 34 | SS316 | 15000PSI | |
| 9590121231615K | 3/4"NPT | 3/4"NPT | 43 | 44 | 44 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
