Series SM-SM WP 15000PSI

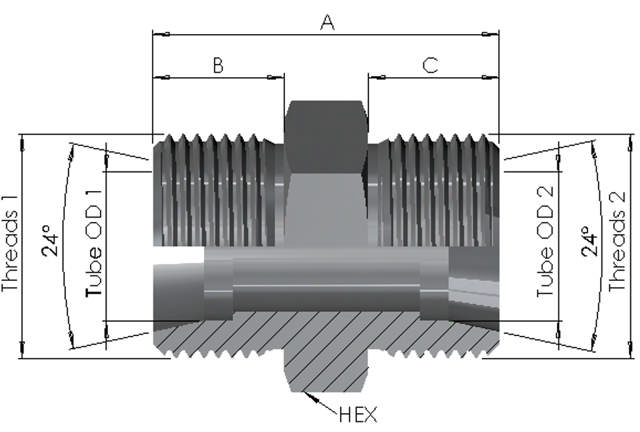

Metric 24° Male/Male 15K
STANDARD
ISO8434-1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Tube Metric 1 | Thread Dim 1 | Tube Metric 2 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM14S14S31615K | 14mm | M22 X 1,5 | 14mm | M22 X 1,5 | 37 | 14 | 14 | 24 | SS316 | 15000PSI | |
| SM14S16S31615K | 14mm | M22 X 1,5 | 16mm | M24 X 1,5 | 37 | 14 | 14 | 24 | SS316 | 15000PSI | |
| SM14S25S31615K | 14mm | M22 X 1,5 | 25mm | M36 X 2,0 | 48 | 14 | 22 | 41 | SS316 | 15000PSI | |
| SM16S16S31615K | 16mm | M24 X 1,5 | 16mm | M24 X 1,5 | 37 | 14 | 14 | 27 | SS316 | 15000PSI | |
| SM16S25S31615K | 16mm | M24 X 1,5 | 25mm | M36 X 2,0 | 48 | 14 | 22 | 41 | SS316 | 15000PSI | |
| SM25S25S31615K | 25mm | M36 X 2,0 | 25mm | M36 X 2,0 | 56 | 22 | 22 | 41 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
