Series SM5500 WP 15000PSI

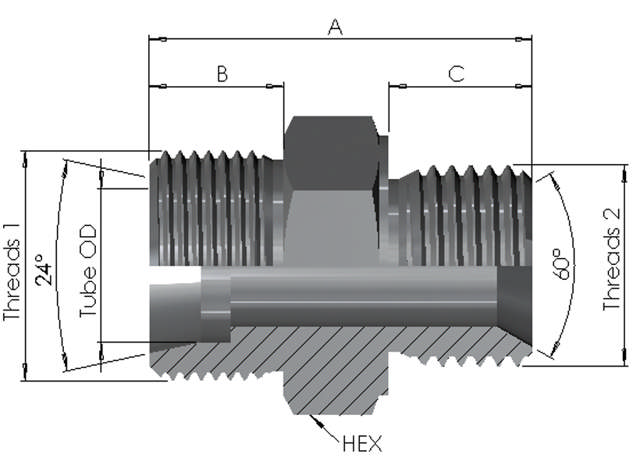

Metric 24° Male x BSP Male 15K
STANDARD
ISO8434-1 and ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Tube Metric 1 | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| SM550014S0431615K | 14mm | M22 X 1,5 | G 1/4" | 36 | 14 | 11 | 24 | SS316 | 15000PSI | |
| SM550014S0831615K | 14mm | M22 X 1,5 | G 1/2" | 40 | 14 | 15 | 27 | SS316 | 15000PSI | |
| SM550016S0431615K | 16mm | M24 X 1,5 | G 1/4" | 36 | 14 | 11 | 27 | SS316 | 15000PSI | |
| SM550016S0631615K | 16mm | M24 X 1,5 | G 3/8" | 37.5 | 14 | 12.5 | 27 | SS316 | 15000PSI | |
| SM550016S0831615K | 16mm | M24 X 1,5 | G 1/2" | 40 | 14 | 15 | 27 | SS316 | 15000PSI | |
| SM550016S1231615K | 16mm | M24 X 1,5 | G 3/4" | 42 | 14 | 17 | 27 | SS316 | 15000PSI | |
| SM550016S1631615K | 16mm | M24 X 1,5 | G1" | 46 | 14 | 19 | 36 | SS316 | 15000PSI | |
| SM550025S0831615K | 25mm | M36 X 2,0 | G 1/2" | 50 | 22 | 15 | 41 | SS316 | 15000PSI | |
| SM550025S1231615K | 25mm | M36 X 2,0 | G 3/4" | 52 | 22 | 17 | 41 | SS316 | 15000PSI | |
| SM550025S1631615K | 25mm | M36 X 2,0 | G 1" | 54 | 22 | 19 | 41 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
