Series 5500 WP 15000PSI

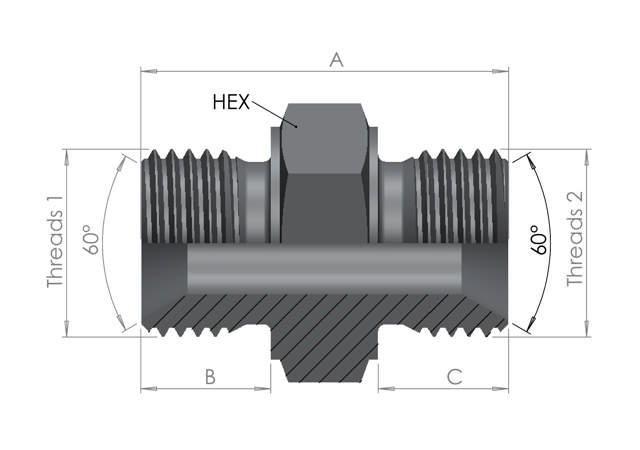

BSP Male/Male 15K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 5500040431615K | G 1/4" | G 1/4" | 33 | 11 | 11 | 19 | SS316 | 15000PSI | |
| 5500040631615K | G 1/4" | G 3/8" | 35 | 11 | 12.5 | 22 | SS316 | 15000PSI | |
| 5500040831615K | G 1/4" | G 1/2" | 37 | 11 | 15 | 27 | SS316 | 15000PSI | |
| 5500060631615K | G 3/8" | G 3/8" | 36 | 12.5 | 12.5 | 22 | SS316 | 15000PSI | |
| 5500060831615K | G 3/8" | G 1/2" | 39 | 12.5 | 15 | 27 | SS316 | 15000PSI | |
| 5500080831615K | G 1/2" | G 1/2" | 41 | 15 | 15 | 27 | SS316 | 15000PSI | |
| 5500081231615K | G 1/2" | G 3/4" | 45 | 15 | 17 | 32 | SS316 | 15000PSI | |
| 5500081631615K | G 1/2" | G 1" | 50 | 15 | 19 | 41 | SS316 | 15000PSI | |
| 5500121231615K | G 3/4" | G 3/4" | 46 | 17 | 17 | 32 | SS316 | 15000PSI | |
| 5500121631615K | G 3/4" | G 1" | 51 | 17 | 19 | 41 | SS316 | 15000PSI | |
| 5500161631615K | G 1" | G 1" | 54 | 19 | 19 | 41 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
