Series 6100 WP 15000PSI

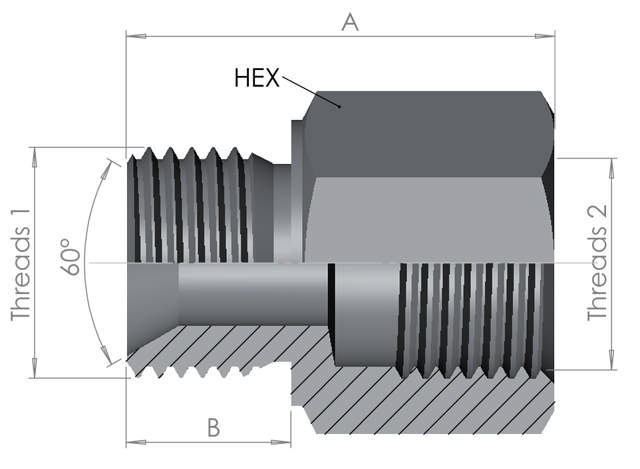

BSP Male/Female Fixed 15K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| 6100040431615K | G 1/4" | G 1/4" | 31 | 11 | 24 | SS316 | 15000PSI | |
| 6100040631615K | G 1/4" | G 3/8" | 34 | 11 | 27 | SS316 | 15000PSI | |
| 6100040831615K | G 1/4" | G 1/2" | 37 | 11 | 36 | SS316 | 15000PSI | |
| 6100060431615K | G 3/8" | G 1/4" | 32 | 12.5 | 24 | SS316 | 15000PSI | |
| 6100060631615K | G 3/8" | G 3/8" | 35 | 12.5 | 27 | SS316 | 15000PSI | |
| 6100060831615K | G 3/8" | G 1/2" | 37 | 12.5 | 36 | SS316 | 15000PSI | |
| 6100080431615K | G 1/2" | G 1/4" | 37 | 15 | 27 | SS316 | 15000PSI | |
| 6100080631615K | G 1/2" | G 3/8" | 37 | 15 | 27 | SS316 | 15000PSI | |
| 6100080831615K | G 1/2" | G 1/2" | 40 | 15 | 36 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
