Series 6390 WP 15000PSI

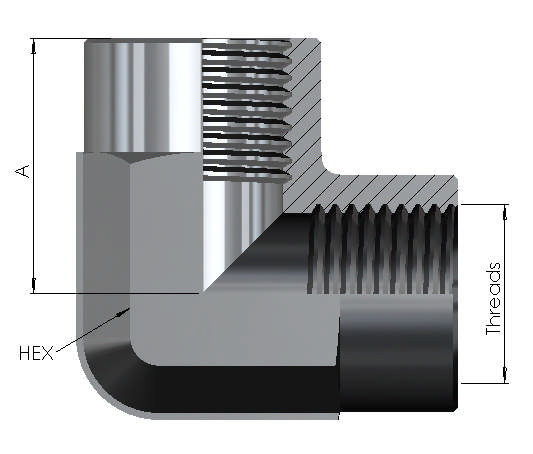

BSP Female/Female Fixed Elbow 90° 15K
STANDARD
ISO1179
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|
| 6390040431615K | G 1/4" | G 1/4" | 26 | 23 | SS316 | 15000PSI | |
| 6390060631615K | G 3/8" | G 3/8" | 31 | 28 | SS316 | 15000PSI | |
| 6390080831615K | G 1/2" | G 1/2" | 37 | 34 | SS316 | 15000PSI | |
| 6390121231615K | G 3/4" | G 3/4" | 42 | 44 | SS316 | 15000PSI | |
| 6390161631610K | G 1" | G 1" | 49 | 52 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
