Series 8330 WP 10000PSI

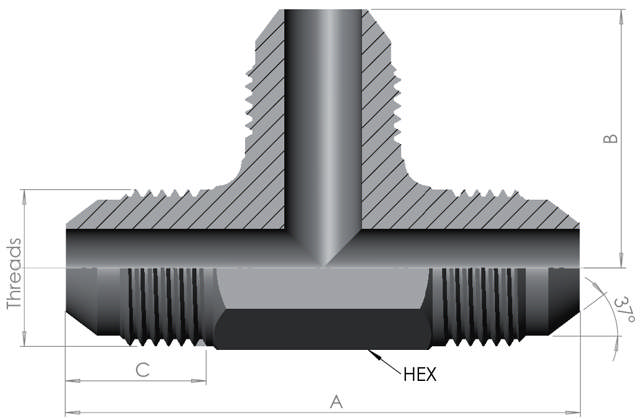

JIC Male Tee 10K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| 8330070731610K | 7/16"-20UN | 53 | 26.5 | 14.5 | 16 | SS316 | 10000PSI | |
| 8330080831610K | 1/2"-20UN | 53 | 26.5 | 14.5 | 16 | SS316 | 10000PSI | |
| 8330090931610K | 9/16"-18UN | 53 | 26.5 | 14.5 | 16 | SS316 | 10000PSI | |
| 8330121231610K | 3/4"-16UN | 63 | 31.5 | 16.5 | 20 | SS316 | 10000PSI | |
| 8330141431610K | 7/8"-14UN | 73 | 36.5 | 20 | 23 | SS316 | 10000PSI | |
| 8330171731610K | 1 1/16"-12UN | 83 | 41.5 | 22 | 28 | SS316 | 10000PSI | |
| 8330212131610K | 1 5/16"-12UN | 94 | 47 | 23 | 34 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
