Series 8310 WP 10000PSI
JIC Male/JIC Male Bulkhead 10K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

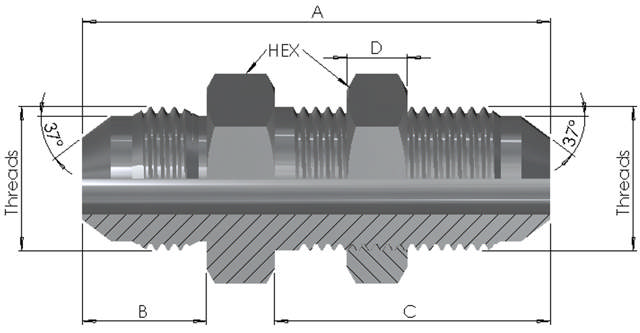

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | D | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 8310070731610K | 7/16"-20UN | 7/16"-20UN | 53 | 14.5 | 31 | 6.5 | 17 | SS316 | 10000PSI | |
| 8310080831610K | 1/2"-20UN | 1/2"-20UN | 53 | 14.5 | 31 | 6.5 | 19 | SS316 | 10000PSI | |
| 8310090931610K | 9/16"-18UN | 9/16"-18UN | 56 | 14.5 | 33 | 7 | 22 | SS316 | 10000PSI | |
| 8310121231610K | 3/4"-16UN | 3/4"-16UN | 62 | 16.5 | 36.5 | 8 | 24 | SS316 | 10000PSI | |
| 8310141431610K | 7/8"-14UN | 7/8"-14UN | 69 | 20 | 40 | 9 | 30 | SS316 | 10000PSI | |
| 8310171731610K | 1 1/16"-12UN | 1 1/16"-12UN | 77 | 22 | 44 | 10.5 | 32 | SS316 | 10000PSI | |
| 8310212131610K | 1 5/16"-12UN | 1 5/16"-12UN | 78 | 23 | 44 | 10.5 | 41 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
