Series 8300 WP 10000PSI

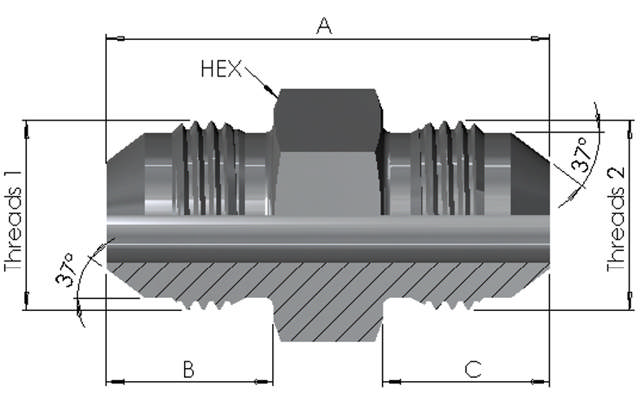

JIC Male/JIC Male 10K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 8300070731610K | 7/16"-20UN | 7/16"-20UN | 37 | 14.5 | 14.5 | 14 | SS316 | 10000PSI | |
| 8300070931610K | 7/16"-20UN | 9/16"-18UN | 37 | 14.5 | 14.5 | 17 | SS316 | 10000PSI | |
| 8300080831610K | 1/2"-20UN | 1/2"-20UN | 37 | 14.5 | 14.5 | 14 | SS316 | 10000PSI | |
| 8300090931610K | 9/16"-18UN | 9/16"-18UN | 37 | 14.5 | 14.5 | 17 | SS316 | 10000PSI | |
| 8300091231610K | 9/16"-18UN | 3/4"-16UN | 40 | 14.5 | 16.5 | 22 | SS316 | 10000PSI | |
| 8300121231610K | 3/4"-16UN | 3/4"-16UN | 42 | 16.5 | 16.5 | 22 | SS316 | 10000PSI | |
| 8300121431610K | 3/4"-16UN | 7/8"-14UN | 45 | 16.5 | 20 | 24 | SS316 | 10000PSI | |
| 8300121731610K | 3/4"-16UN | 1 1/16"-12UN | 49 | 16.5 | 22 | 30 | SS316 | 10000PSI | |
| 8300141431610K | 7/8"-14UN | 7/8"-14UN | 48 | 20 | 20 | 24 | SS316 | 10000PSI | |
| 8300141731610K | 7/8"-14UN | 1 1/16"-12UN | 52 | 20 | 22 | 30 | SS316 | 10000PSI | |
| 8300171731610K | 1 1/16"-12UN | 1 1/16"-12UN | 54 | 22 | 22 | 30 | SS316 | 10000PSI | |
| 8300172131610K | 1 1/16"-12UN | 1 5/16"-12UN | 56 | 22 | 23 | 36 | SS316 | 10000PSI | |
| 8300212131610K | 1 5/16"-12UN | 1 5/16"-12UN | 57 | 23 | 23 | 36 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
