Series 8490 WP 10000PSI

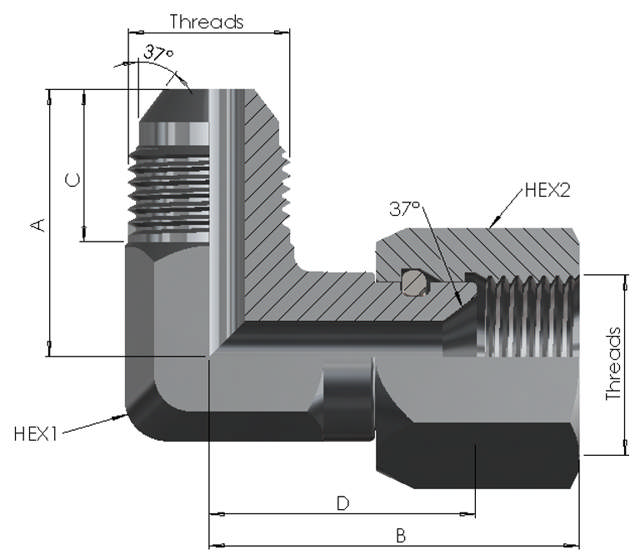

JIC Male/Female Swivel Elbow 90° 10K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | D | Hex 1 | Hex 2 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8490070731610K | 7/16"-20UN | 7/16"-20UN | 26.5 | 34.5 | 14.5 | 26.5 | 16 | 17 | SS316 | 10000PSI | |
| 8490080831610K | 1/2"-20UN | 1/2"-20UN | 26.5 | 34.5 | 14.5 | 26.5 | 16 | 17 | SS316 | 10000PSI | |
| 8490090931610K | 9/16"-18UN | 9/16"-18UN | 26.5 | 36 | 14.5 | 26.5 | 16 | 19 | SS316 | 10000PSI | |
| 8490121231610K | 3/4"-16UN | 3/4"-16UN | 31.5 | 42 | 16.5 | 31.5 | 20 | 27 | SS316 | 10000PSI | |
| 8490141431610K | 7/8"-14UN | 7/8"-14UN | 36.5 | 49 | 20 | 36.5 | 23 | 32 | SS316 | 10000PSI | |
| 8490171731610K | 1 1/16"-12UN | 1 1/16"-12UN | 41.5 | 56 | 22 | 41.5 | 28 | 36 | SS316 | 10000PSI | |
| 8490212131610K | 1 5/16"-12UN | 1 5/16"-12UN | 47 | 62 | 23 | 47 | 34 | 46 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
