Series 8400 WP 10000PSI
JIC Male/Female Swivel 10K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

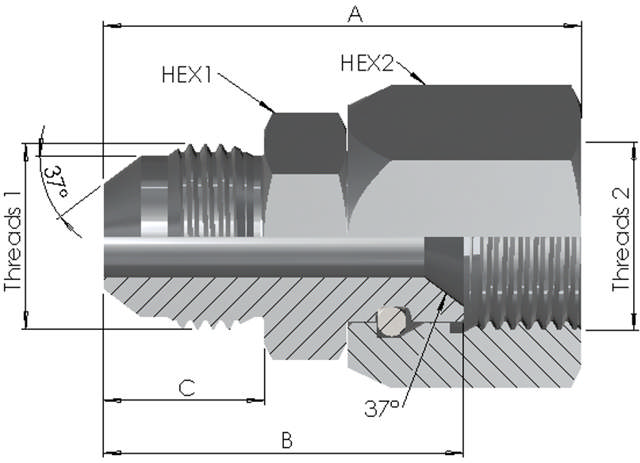

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Hex 2 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8400070731610K | 7/16"-20UN | 7/16"-20UN | 39 | 30.5 | 14.5 | 14 | 17 | SS316 | 10000PSI | |
| 8400070931610K | 7/16"-20UN | 9/16"-18UN | 41 | 31.5 | 14.5 | 14 | 19 | SS316 | 10000PSI | |
| 8400090731610K | 9/16"-18UN | 7/16"-20UN | 39 | 31 | 14.5 | 17 | 17 | SS316 | 10000PSI | |
| 8400090931610K | 9/16"-18UN | 9/16"-18UN | 41 | 32 | 14.5 | 17 | 19 | SS316 | 10000PSI | |
| 8400091231610K | 9/16"-18UN | 3/4"-16UN | 45 | 35 | 14.5 | 19 | 27 | SS316 | 10000PSI | |
| 8400120931610K | 3/4"-16UN | 9/16"-18UN | 43 | 34 | 16.5 | 22 | 19 | SS316 | 10000PSI | |
| 8400121231610K | 3/4"-16UN | 3/4"-16UN | 47 | 37 | 16.5 | 22 | 27 | SS316 | 10000PSI | |
| 8400121431610K | 3/4"-16UN | 7/8"-14UN | 48 | 36 | 16.5 | 22 | 30 | SS316 | 10000PSI | |
| 8400121731610K | 3/4"-16UN | 1 1/16"-12UN | 47 | 33 | 16.5 | 0 | 36 | SS316 | 10000PSI | |
| 8400122131610K | 3/4"-16UN | 1 5/16"-12UN | 48 | 33 | 16.5 | 0 | 46 | SS316 | 10000PSI | |
| 8400141231610K | 7/8"-14UN | 3/4"-16UN | 49 | 39 | 20 | 24 | 24 | SS316 | 10000PSI | |
| 8400141431610K | 7/8"-14UN | 7/8"-14UN | 52 | 40 | 20 | 24 | 30 | SS316 | 10000PSI | |
| 8400141731610K | 7/8"-14UN | 1 1/16"-12UN | 57 | 43 | 20 | 27 | 36 | SS316 | 10000PSI | |
| 8400170931610K | 1 1/16"-12UN | 9/16"-18UN | 50.5 | 41 | 22 | 30 | 19 | SS316 | 10000PSI | |
| 8400171231610K | 1 1/16"-12UN | 3/4"-16UN | 52 | 42 | 22 | 30 | 27 | SS316 | 10000PSI | |
| 8400171431610K | 1 1/16"-12UN | 7/8"-14UN | 55 | 43 | 22 | 30 | 30 | SS316 | 10000PSI | |
| 8400171731610K | 1 1/16"-12UN | 1 1/16"-12UN | 60 | 46 | 22 | 30 | 36 | SS316 | 10000PSI | |
| 8400172131610K | 1 1/16"-12UN | 1 5/16"-12UN | 61 | 46 | 22 | 32 | 46 | SS316 | 10000PSI | |
| 8400211731610K | 1 5/16"-12UN | 1 1/16"-12UN | 62 | 48 | 23 | 36 | 36 | SS316 | 10000PSI | |
| 8400212131610K | 1 5/16"-12UN | 1 5/16"-12UN | 63 | 48 | 23 | 36 | 46 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
