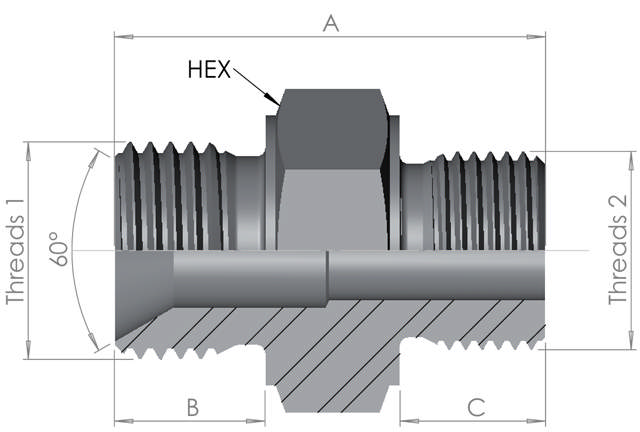

Series 7500 WP 10000PSI
BSP Male/UN (SAE) Male 10K
STANDARD
ISO1179 / BS5200 and ISO11926-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 7500040731610K | G 1/4" | 7/16"-20UN | 32 | 11 | 10 | 19 | SS316 | 10000PSI | |
| 7500040831610K | G 1/4" | 1/2"-20UN | 32 | 11 | 10 | 19 | SS316 | 10000PSI | |
| 7500040931610K | G 1/4" | 9/16"-18UN | 32 | 11 | 10 | 19 | SS316 | 10000PSI | |
| 7500060931610K | G 3/8" | 9/16"-18UN | 34 | 12.5 | 10 | 22 | SS316 | 10000PSI | |
| 7500061231610K | G 3/8" | 3/4"-16UN | 36 | 12.5 | 12 | 24 | SS316 | 10000PSI | |
| 7500080931610K | G 1/2" | 9/16"-18UN | 36 | 15 | 10 | 27 | SS316 | 10000PSI | |
| 7500081231610K | G 1/2" | 3/4"-16UN | 38 | 15 | 12 | 27 | SS316 | 10000PSI | |
| 7500081431610K | G 1/2" | 7/8"-14UN | 39 | 15 | 13 | 27 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
