Series 8100 WP 10000PSI

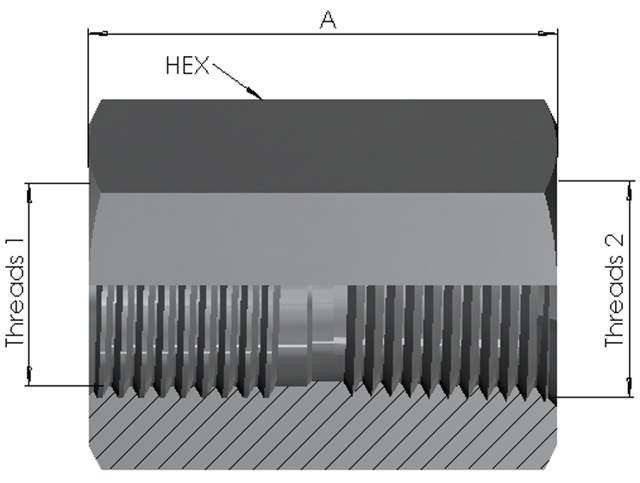

BSP Female Fixed/NPT Female 10K
STANDARD
ISO1179 and ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|
| 8100040431610K | G 1/4" | 1/4"NPT | 34 | 22 | SS316 | 10000PSI | |
| 8100040631610K | G 1/4" | 3/8"NPT | 34 | 24 | SS316 | 10000PSI | |
| 8100040831610K | G 1/4" | 1/2"NPT | 40 | 32 | SS316 | 10000PSI | |
| 8100060431610K | G 3/8" | 1/4"NPT | 34 | 24 | SS316 | 10000PSI | |
| 8100060631610K | G 3/8" | 3/8"NPT | 36 | 24 | SS316 | 10000PSI | |
| 8100060831610K | G 3/8" | 1/2"NPT | 42 | 32 | SS316 | 10000PSI | |
| 8100080431610K | G 1/2" | 1/4"NPT | 38 | 32 | SS316 | 10000PSI | |
| 8100080631610K | G 1/2" | 3/8"NPT | 39 | 32 | SS316 | 10000PSI | |
| 8100080831610K | G 1/2" | 1/2"NPT | 43 | 32 | SS316 | 10000PSI | |
| 8100081231610K | G 1/2" | 3/4"NPT | 48 | 41 | SS316 | 10000PSI | |
| 8100081631610K | G 1/2" | 1"NPT | 52 | 50 | SS316 | 10000PSI | |
| 8100120831610K | G 3/4" | 1/2"NPT | 46 | 41 | SS316 | 10000PSI | |
| 8100121231610K | G 3/4" | 3/4"NPT | 46 | 41 | SS316 | 10000PSI | |
| 8100121631610K | G 3/4" | 1"NPT | 54 | 50 | SS316 | 10000PSI | |
| 8100160831610K | G 1" | 1/2"NPT | 50 | 50 | SS316 | 10000PSI | |
| 8100161231610K | G 1" | 3/4"NPT | 52 | 50 | SS316 | 10000PSI | |
| 8100161631610K | G 1" | 1"NPT | 52 | 50 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
