Series 7300 WP 10000PSI

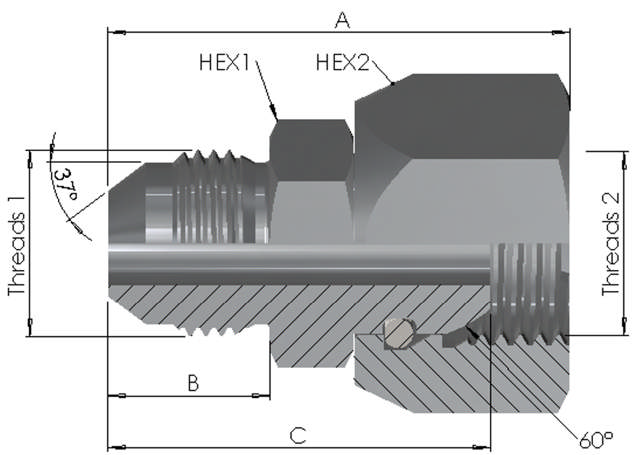

JIC Male/BSP Female Swivel 10K
STANDARD
ISO8434-2 and ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 7300070431610K | 7/16"-20UN | G 1/4" | 40.5 | 32 | 14.5 | 14 | 19 | SS316 | 10000PSI | |
| 7300080431610K | 1/2"-20UN | G 1/4" | 40.5 | 32 | 14.5 | 14 | 19 | SS316 | 10000PSI | |
| 7300090431610K | 9/16"-18UN | G 1/4" | 41.5 | 32 | 14.5 | 17 | 19 | SS316 | 10000PSI | |
| 7300090631610K | 9/16"-18UN | G 3/8" | 45.5 | 36 | 14.5 | 17 | 22 | SS316 | 10000PSI | |
| 7300090831610K | 9/16"-18UN | G 1/2" | 47 | 37 | 14.5 | 19 | 30 | SS316 | 10000PSI | |
| 7300120431610K | 3/4"-16UN | G 1/4" | 41 | 34.5 | 16.5 | 22 | 19 | SS316 | 10000PSI | |
| 7300120631610K | 3/4"-16UN | G 3/8" | 44.5 | 38 | 16.5 | 22 | 22 | SS316 | 10000PSI | |
| 7300120831610K | 3/4"-16UN | G 1/2" | 49 | 39 | 16.5 | 22 | 30 | SS316 | 10000PSI | |
| 7300140831610K | 7/8"-14UN | G 1/2" | 55 | 42.5 | 19.5 | 24 | 30 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
