Series 7200 WP 10000PSI
BSP Male/JIC Female Swivel 10K
STANDARD
ISO1179 / BS5200 and ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

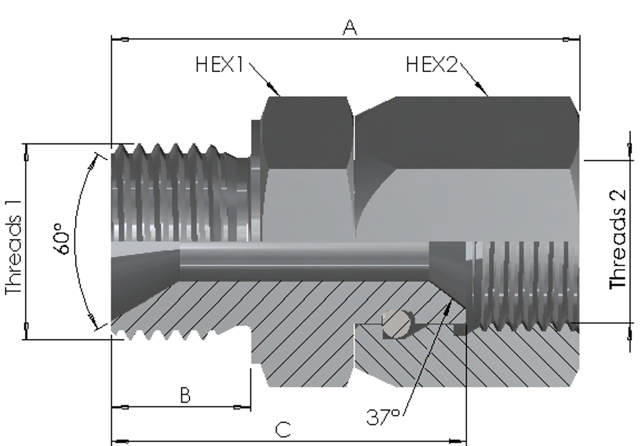

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 7200040731610K | G 1/4" | 7/16"-20UN | 37 | 11 | 29 | 19 | 17 | SS316 | 10000PSI | |
| 7200040931610K | G 1/4" | 9/16"-18UN | 39 | 11 | 30 | 19 | 19 | SS316 | 10000PSI | |
| 7200060931610K | G 3/8" | 9/16"-18UN | 41 | 12.5 | 32 | 22 | 19 | SS316 | 10000PSI | |
| 7200061231610K | G 3/8" | 3/4"-16UN | 43 | 12.5 | 33 | 22 | 27 | SS316 | 10000PSI | |
| 7200080931610K | G 1/2" | 9/16"-18UN | 44 | 15 | 35 | 27 | 19 | SS316 | 10000PSI | |
| 7200081231610K | G 1/2" | 3/4"-16UN | 46 | 15 | 36 | 27 | 27 | SS316 | 10000PSI | |
| 7200081431610K | G 1/2" | 7/8"-14UN | 49 | 15 | 37 | 32 | 30 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
