Series 6490 WP 10000PSI
BSP Female/Female Swivel Elbow 90° 10K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

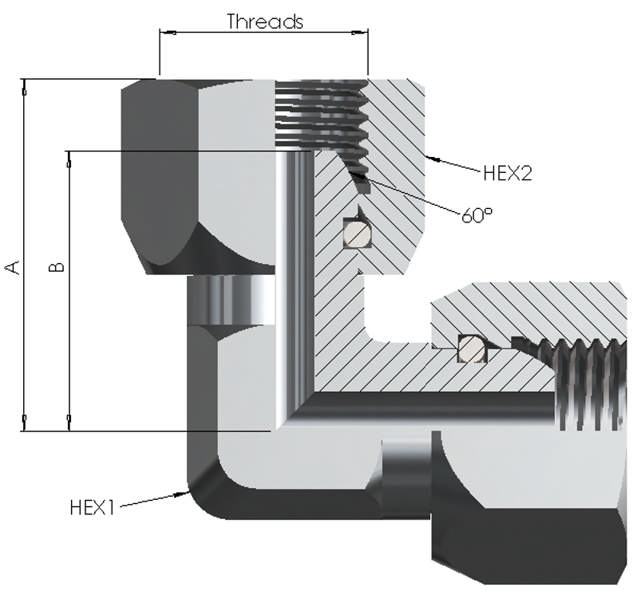

| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Hex 2 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|
| 6490040431610K | G 1/4" | G 1/4" | 33 | 26.5 | 16 | 19 | SS316 | 10000PSI | |
| 6490060631610K | G 3/8" | G 3/8" | 33 | 26.5 | 16 | 22 | SS316 | 10000PSI | |
| 6490080831610K | G 1/2" | G 1/2" | 38.5 | 31.5 | 20 | 30 | SS316 | 10000PSI | |
| 6490121231610K | G 3/4" | G 3/4" | 51.5 | 41.5 | 28 | 36 | SS316 | 10000PSI | |
| 6490161631610K | G 1" | G 1" | 57 | 47 | 34 | 46 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
