Series 6400 WP 10000PSI

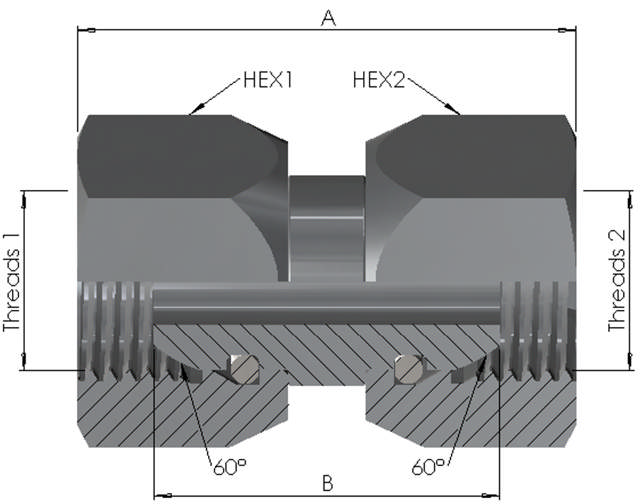

BSP Female/Female Swivel 10K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Hex 2 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|
| 6400040431610K | G 1/4" | G 1/4" | 37 | 24 | 19 | 19 | SS316 | 10000PSI | |
| 6400060631610K | G 3/8" | G 3/8" | 46 | 33 | 22 | 22 | SS316 | 10000PSI | |
| 6400080831610K | G 1/2" | G 1/2" | 50 | 36 | 32 | 32 | SS316 | 10000PSI | |
| 6400121231610K | G 3/4" | G 3/4" | 58 | 38 | 36 | 36 | SS316 | 10000PSI | |
| 6400161631610K | G 1" | G 1" | 58 | 38 | 46 | 46 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
