Series 9900U WP <15000PSI

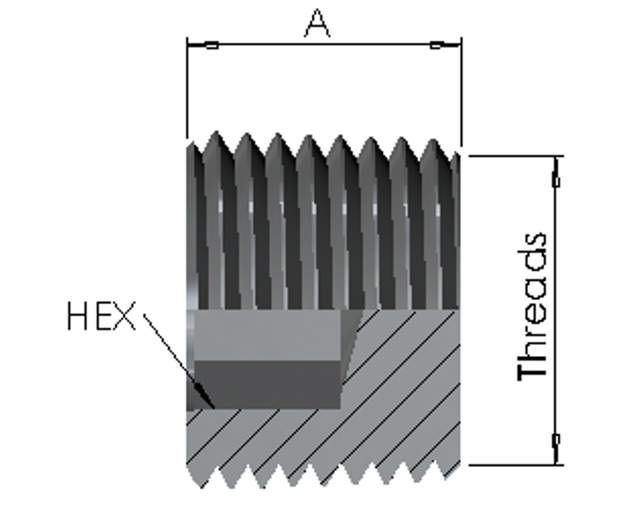

NPT Male Hollow Hex Plug <15K
STANDARD
ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|
| 99000202U316 | 1/8" NPT | 8 | 4 | SS316 | 15000PSI | |
| 99000404U316 | 1/4" NPT | 12 | 6 | SS316 | 15000PSI | |
| 99000606U316 | 3/8"NPT | 12 | 8 | SS316 | 15000PSI | |
| 99000808U316 | 1/2"NPT | 16 | 10 | SS316 | 15000PSI | |
| 99001212U316 | 3/4"NPT | 16 | 12 | SS316 | 15000PSI | |
| 99001616U316 | 1"NPT | 20 | 17 | SS316 | 15000PSI | |
| 99002020U316 | 1 1/4"NPT | 20 | 17 | SS316 | 10000PSI | |
| 99002424U316 | 1 1/2"NPT | 20 | 22 | SS316 | 10000PSI | |
| 99003232U316 | 2"NPT | 20 | 27 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
