Series 9900SBL WP <15000PSI

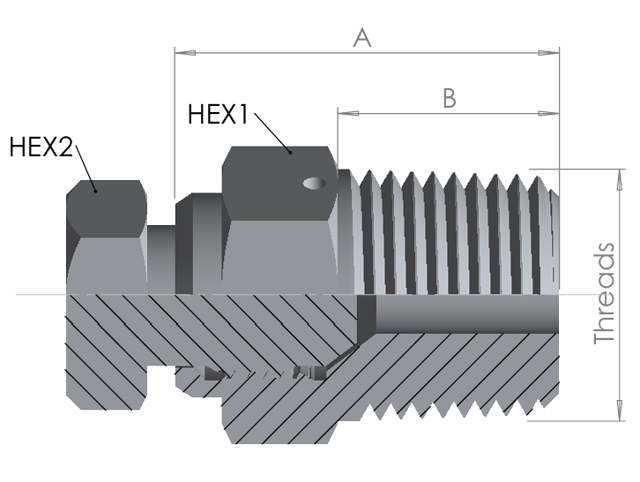

NPT Male Hex Safety Bleed Plug <15K
STANDARD
ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | A | B | Hex 1 | Hex 2 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| 99000404SBL316 | 1/4"NPT | 27 | 14 | 17 | 14 | SS316 | 15000PSI | |
| 99000606SBL316 | 3/8"NPT | 24 | 15 | 19 | 14 | SS316 | 15000PSI | |
| 99000808SBL316 | 1/2"NPT | 29 | 19 | 22 | 17 | SS316 | 15000PSI | |
| 99001212SBL316 | 3/4"NPT | 33 | 20 | 27 | 17 | SS316 | 15000PSI | |
| 99001616SBL316 | 1"NPT | 38 | 24 | 36 | 17 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
