Series 9950 WP 6000PSI
NPT Female Cap 6K
STANDARD
ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

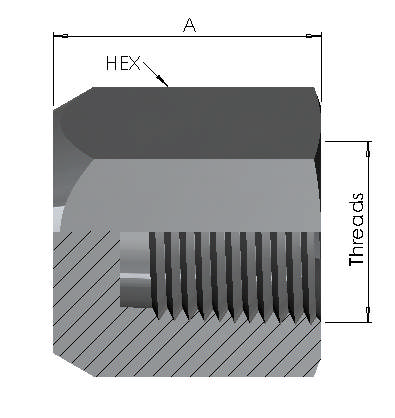

| Product Code | Thread Dim 1 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|
| 99500404316 | 1/4"NPT | 24 | 19 | SS316 | 6000PSI | |
| 99500606316 | 3/8"NPT | 26 | 22 | SS316 | 6000PSI | |
| 99500808316 | 1/2"NPT | 32 | 30 | SS316 | 6000PSI | |
| 99501212316 | 3/4"NPT | 34 | 36 | SS316 | 6000PSI | |
| 99501616316 | 1"NPT | 38 | 46 | SS316 | 6000PSI | |
| 99502020316 | 1 1/4"NPT | 40 | 55 | SS316 | 6000PSI | |
| 99502424316 | 1 1/2"NPT | 42 | 60 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
