Series 9950 WP 10000PSI
NPT Female Cap 10K
STANDARD
ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

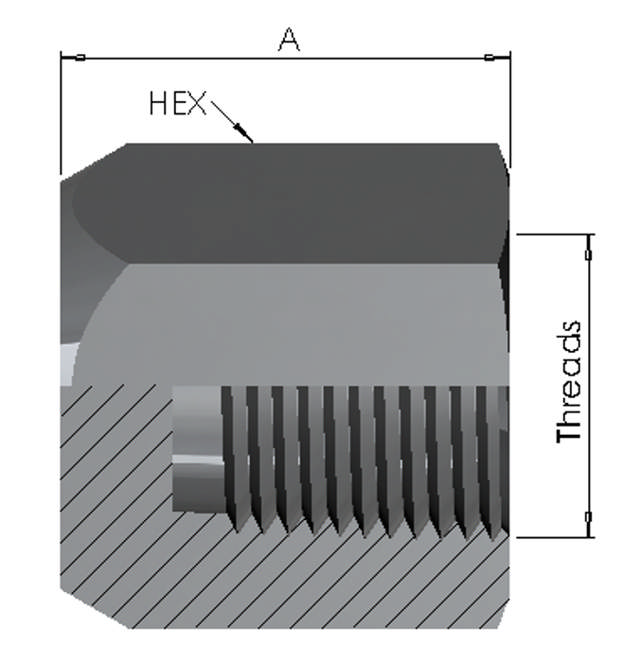

| Product Code | Thread Dim 1 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|
| 9950040431610K | 1/4"NPT | 24 | 22 | SS316 | 10000PSI | |
| 9950060631610K | 3/8"NPT | 26 | 24 | SS316 | 10000PSI | |
| 9950080831610K | 1/2"NPT | 32 | 32 | SS316 | 10000PSI | |
| 9950121231610K | 3/4"NPT | 34 | 41 | SS316 | 10000PSI | |
| 9950161631610K | 1"NPT | 38 | 50 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
