Series 9700 WP <15000PSI

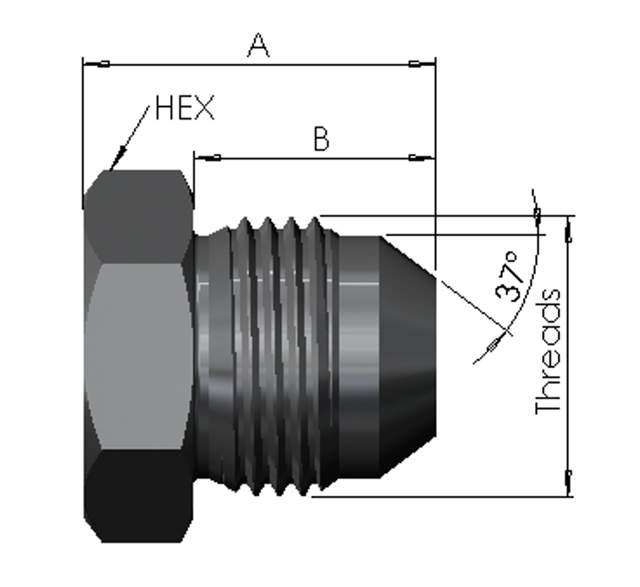

JIC Male Hex Plug <15K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | A | B | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|
| 97000707316 | 7/16"-20UN | 20.5 | 14.5 | 14 | SS316 | 15000PSI | |
| 97000808316 | 1/2"-20UN | 20.5 | 14.5 | 14 | SS316 | 15000PSI | |
| 97000909316 | 9/16"-18UN | 21.5 | 14.5 | 17 | SS316 | 15000PSI | |
| 97001212316 | 3/4"-16UN | 24 | 16.5 | 22 | SS316 | 15000PSI | |
| 97001414316 | 7/8"-14UN | 28 | 20 | 24 | SS316 | 15000PSI | |
| 97001717316 | 1 1/16"-12UN | 32.5 | 22 | 30 | SS316 | 15000PSI | |
| 97002121316 | 1 5/16"-12UN | 34 | 23 | 36 | SS316 | 15000PSI | |
| 97002626316 | 1 5/8"-12UN | 37 | 24.5 | 46 | SS316 | 10000PSI | |
| 97003030316 | 1 7/8"-12UN | 42 | 27.5 | 50 | SS316 | 10000PSI | |
| 97004040316 | 2 1/2"-12UN | 52 | 34 | 65 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
