Series 9750 WP 6000PSI

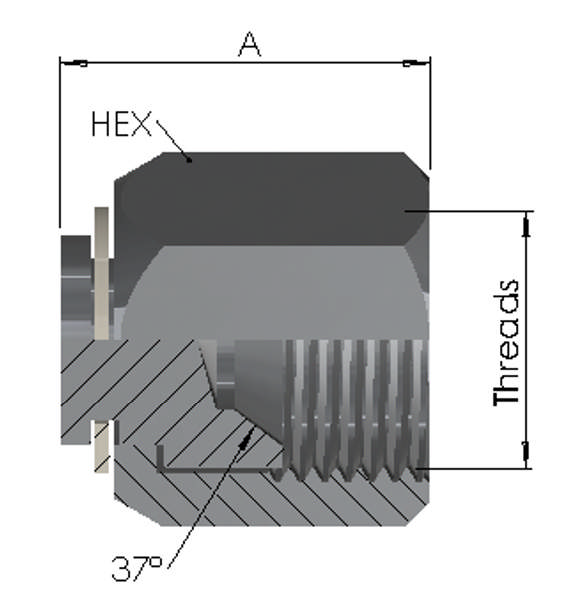

JIC Female Swivel Cap 6K
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|
| 97500707316 | 7/16"-20UN | 15.5 | 14 | SS316 | 6000PSI | |
| 97500808316 | 1/2"-20UN | 17 | 17 | SS316 | 6000PSI | |
| 97500909316 | 9/16"-18UN | 18.3 | 19 | SS316 | 6000PSI | |
| 97501212316 | 3/4"-16UN | 21.3 | 22 | SS316 | 6000PSI | |
| 97501414316 | 7/8"-14UN | 24.5 | 27 | SS316 | 6000PSI | |
| 97501717316 | 1 1/16"-12UN | 26 | 32 | SS316 | 6000PSI | |
| 97502121316 | 1 5/16"-12UN | 28.5 | 38 | SS316 | 6000PSI | |
| 97502626316 | 1 5/8"-12UN | 31 | 50 | SS316 | 6000PSI | |
| 97503030316 | 1 7/8"-12UN | 36 | 55 | SS316 | 6000PSI | |
| 97504040316 | 2 1/2"-12UN | 44 | 75 | SS316 | 6000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
