Series 9800 WP <15000PSI

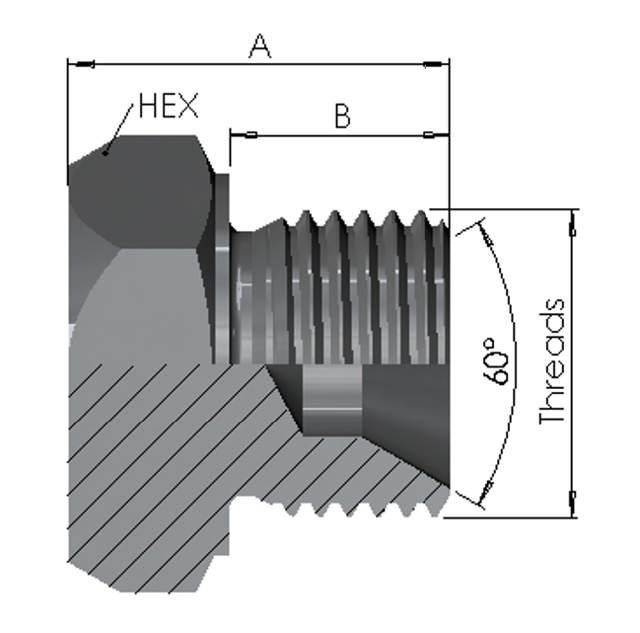

BSP Male Hex Plug <15K
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Thread Dim 1 | A | B | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|
| 98000202316 | G 1/8" | 16 | 8.5 | 14 | SS316 | 10000PSI | |
| 98000404316 | G 1/4" | 20 | 11 | 19 | SS316 | 15000PSI | |
| 98000606316 | G 3/8" | 23 | 12.5 | 22 | SS316 | 15000PSI | |
| 98000808316 | G 1/2" | 26 | 15 | 27 | SS316 | 15000PSI | |
| 98001010316 | G 5/8" | 29 | 16 | 30 | SS316 | 15000PSI | |
| 98001212316 | G 3/4" | 30 | 17 | 32 | SS316 | 15000PSI | |
| 98001616316 | G 1" | 35 | 19 | 41 | SS316 | 15000PSI | |
| 98002020316 | G 1 1/4" | 39 | 21 | 50 | SS316 | 10000PSI | |
| 98002424316 | G 1 1/2" | 40 | 22 | 55 | SS316 | 10000PSI | |
| 98003232316 | G 2" | 46 | 25 | 70 | SS316 | 10000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
