Series MMF5500 WP 15000PSI
Medium Pressure Male x BSP Male 15K
STANDARD
Medium Pressure and ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

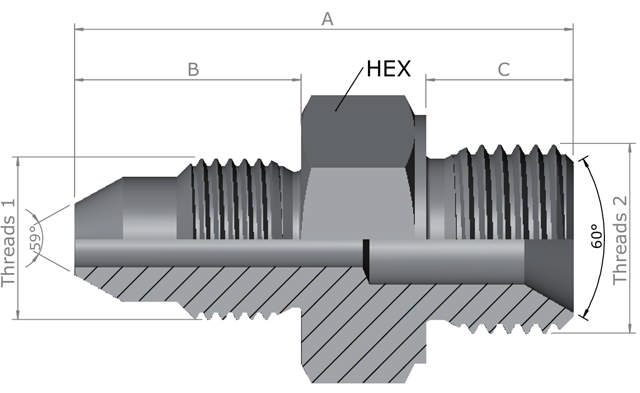

| Product Code | MP Size 1 | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|---|
| MMF55000404316 | 1/4" (04) | 7/16"-20UN | G 1/4" | 40 | 18 | 11 | 19 | SS316 | 15000PSI | |
| MMF55000406316 | 1/4" (04) | 7/16"-20UN | G 3/8" | 42 | 18 | 12.5 | 22 | SS316 | 15000PSI | |
| MMF55000408316 | 1/4" (04) | 7/16"-20UN | G 1/2" | 45 | 18 | 15 | 27 | SS316 | 15000PSI | |
| MMF55000604316 | 3/8" (06) | 9/16"-18UN | G 1/4" | 42 | 20 | 11 | 19 | SS316 | 15000PSI | |
| MMF55000606316 | 3/8" (06) | 9/16"-18UN | G 3/8" | 44 | 20 | 12.5 | 22 | SS316 | 15000PSI | |
| MMF55000608316 | 3/8" (06) | 9/16"-18UN | G 1/2" | 47 | 20 | 15 | 27 | SS316 | 15000PSI | |
| MMF55000904316 | 9/16" (09) | 13/16"-16UN | G 1/4" | 47 | 25 | 11 | 22 | SS316 | 15000PSI | |
| MMF55000906316 | 9/16" (09) | 13/16"-16UN | G 3/8" | 49 | 25 | 12.5 | 22 | SS316 | 15000PSI | |
| MMF55000908316 | 9/16" (09) | 13/16"-16UN | G 1/2" | 52 | 25 | 15 | 27 | SS316 | 15000PSI | |
| MMF55000912316 | 9/16" (09) | 13/16"-16UN | G 3/4" | 54 | 25 | 17 | 32 | SS316 | 15000PSI | |
| MMF55000916316 | 9/16" (09) | 13/16"-16UN | G 1" | 59 | 25 | 19 | 41 | SS316 | 15000PSI | |
| MMF55001208316 | 3/4" (12) | 3/4"-14NPSM | G 1/2" | 57 | 30 | 15 | 27 | SS316 | 15000PSI | |
| MMF55001212316 | 3/4" (12) | 3/4"-14NPSM | G 3/4" | 60 | 30 | 17 | 32 | SS316 | 15000PSI | |
| MMF55001216316 | 3/4" (12) | 3/4"-14NPSM | G 1" | 64 | 30 | 19 | 41 | SS316 | 15000PSI | |
| MMF55001608316 | 1" (16) | 1 3/8"-12UN | G 1/2" | 72 | 43 | 15 | 36 | SS316 | 15000PSI | |
| MMF55001612316 | 1" (16) | 1 3/8"-12UN | G 3/4" | 74 | 43 | 17 | 36 | SS316 | 15000PSI | |
| MMF55001616316 | 1" (16) | 1 3/8"-12UN | G 1" | 76 | 43 | 19 | 41 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
