Series MMF6300 WP 15000PSI

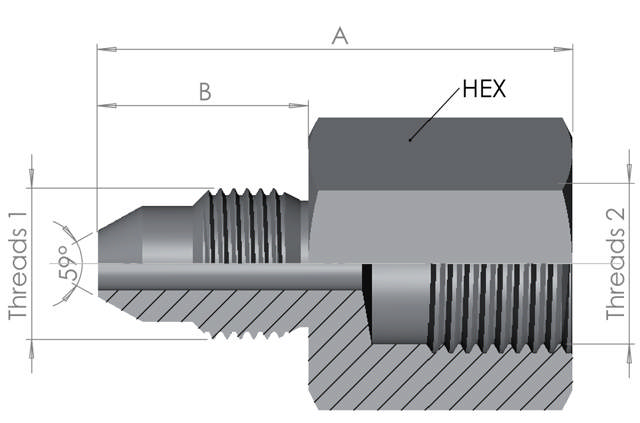

Medium Pressure Male x BSP Female Fixed 15K
STANDARD
Medium Pressure
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | MP Size 1 | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|
| MMF63000404316 | 1/4" (04) | 7/16"-20UN | G 1/4" | 42 | 18 | 24 | SS316 | 15000PSI | |
| MMF63000406316 | 1/4" (04) | 7/16"-20UN | G 3/8" | 44 | 18 | 27 | SS316 | 15000PSI | |
| MMF63000408316 | 1/4" (04) | 7/16"-20UN | G 1/2" | 46 | 18 | 36 | SS316 | 15000PSI | |
| MMF63000604316 | 3/8" (06) | 9/16"-18UN | G 1/4" | 44 | 20 | 24 | SS316 | 15000PSI | |
| MMF63000606316 | 3/8" (06) | 9/16"-18UN | G 3/8" | 45 | 20 | 27 | SS316 | 15000PSI | |
| MMF63000608316 | 3/8" (06) | 9/16"-18UN | G 1/2" | 47 | 20 | 36 | SS316 | 15000PSI | |
| MMF63000904316 | 9/16" (09) | 13/16"-16UN | G 1/4" | 48 | 25 | 24 | SS316 | 15000PSI | |
| MMF63000906316 | 9/16" (09) | 13/16"-16UN | G 3/8" | 50 | 25 | 27 | SS316 | 15000PSI | |
| MMF63000908316 | 9/16" (09) | 13/16"-16UN | G 1/2" | 52 | 25 | 36 | SS316 | 15000PSI | |
| MMF63000912316 | 9/16" (09) | 13/16"-16UN | G 3/4" | 55 | 25 | 46 | SS316 | 15000PSI | |
| MMF63000916316 | 9/16" (09) | 13/16"-16UN | G 1" | 60 | 25 | 55 | SS316 | 15000PSI | |
| MMF63001208316 | 3/4" (12) | 3/4"-14NPSM | G 1/2" | 57 | 30 | 36 | SS316 | 15000PSI | |
| MMF63001212316 | 3/4" (12) | 3/4"-14NPSM | G 3/4" | 60 | 30 | 46 | SS316 | 15000PSI | |
| MMF63001216316 | 3/4" (12) | 3/4"-14NPSM | G 1" | 65 | 30 | 55 | SS316 | 15000PSI | |
| MMF63001608316 | 1" (16) | 1 3/8"-12UN | G 1/2" | 70 | 43 | 36 | SS316 | 15000PSI | |
| MMF63001612316 | 1" (16) | 1 3/8"-12UN | G 3/4" | 73 | 43 | 46 | SS316 | 15000PSI | |
| MMF63001616316 | 1" (16) | 1 3/8"-12UN | G 1" | 78 | 43 | 55 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
