Series MPGAV WP 20000PSI
Medium Pressure Gland Anti-Vibration
STANDARD
Medium Pressure
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

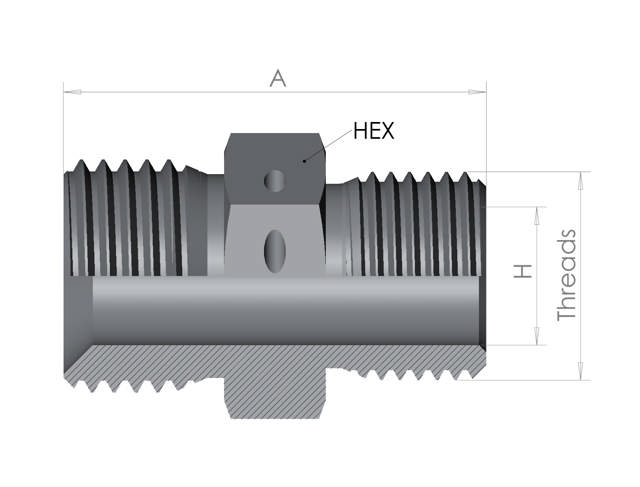

| Product Code | MP Size 1 | Thread Dim 1 | A | H | Hex 1 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|
| MP04GAV316 | 1/4" (04) | 7/16"-20UN | 30 | 6.5 | 14 | SS316 | 20000PSI | |
| MP06GAV316 | 3/8" (06) | 9/16"-18UN | 38 | 9.6 | 17 | SS316 | 20000PSI | |
| MP09GAV316 | 9/16" (09) | 13/16"-16UN | 42 | 14.4 | 24 | SS316 | 20000PSI | |
| MP12GAV316 | 3/4" (12) | 3/4"-14NPSM | 48 | 19.2 | 27 | SS316 | 20000PSI | |
| MP16GAV316 | 1" (16) | 1 3/8"-12UN | 75 | 26 | 36 | SS316 | 20000PSI | |
| MP24GAV316 | 1 1/2" (24) | 1 7/8"-12UN | 90 | 38.2 | 50 | SS316 | 20000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
