Series MF9500 WP 15000PSI

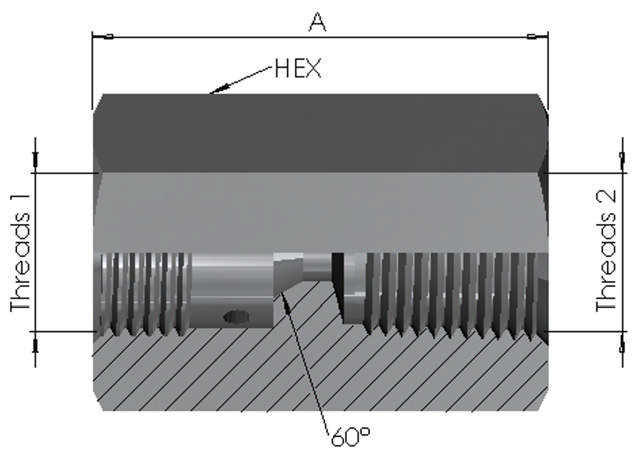

Medium Pressure Female x NPT Female 15K
STANDARD
Medium Pressure and ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | MP Size 1 | Thread Dim 1 | Thread Dim 2 | A | Hex 1 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|
| MF95000404316 | 1/4" (04) | 7/16"-20UN | 1/4"NPT | 35 | 22 | SS316 | 15000PSI | |
| MF95000406316 | 1/4" (04) | 7/16"-20UN | 3/8"NPT | 36 | 24 | SS316 | 15000PSI | |
| MF95000408316 | 1/4" (04) | 7/16"-20UN | 1/2"NPT | 45 | 32 | SS316 | 15000PSI | |
| MF95000604316 | 3/8" (06) | 9/16"-18UN | 1/4"NPT | 40 | 22 | SS316 | 15000PSI | |
| MF95000606316 | 3/8" (06) | 9/16"-18UN | 3/8"NPT | 40 | 24 | SS316 | 15000PSI | |
| MF95000608316 | 3/8" (06) | 9/16"-18UN | 1/2"NPT | 48 | 32 | SS316 | 15000PSI | |
| MF95000904316 | 9/16" (09) | 13/16"-16UN | 1/4"NPT | 44 | 27 | SS316 | 15000PSI | |
| MF95000906316 | 9/16" (09) | 13/16"-16UN | 3/8"NPT | 45 | 27 | SS316 | 15000PSI | |
| MF95000908316 | 9/16" (09) | 13/16"-16UN | 1/2"NPT | 52 | 32 | SS316 | 15000PSI | |
| MF95000912316 | 9/16" (09) | 13/16"-16UN | 3/4"NPT | 52 | 41 | SS316 | 15000PSI | |
| MF95000916316 | 9/16" (09) | 13/16"-16UN | 1"NPT | 55 | 50 | SS316 | 15000PSI | |
| MF95001208316 | 3/4" (12) | 3/4"-14NPSM | 1/2"NPT | 58 | 36 | SS316 | 15000PSI | |
| MF95001212316 | 3/4" (12) | 3/4"-14NPSM | 3/4"NPT | 60 | 41 | SS316 | 15000PSI | |
| MF95001216316 | 3/4" (12) | 3/4"-14NPSM | 1"NPT | 65 | 50 | SS316 | 15000PSI | |
| MF95001608316 | 1" (16) | 1 3/8"-12UN | 1/2"NPT | 69 | 46 | SS316 | 15000PSI | |
| MF95001612316 | 1" (16) | 1 3/8"-12UN | 3/4"NPT | 70 | 46 | SS316 | 15000PSI | |
| MF95001616316 | 1" (16) | 1 3/8"-12UN | 1"NPT | 74 | 50 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
