Series MF8300 WP 15000PSI

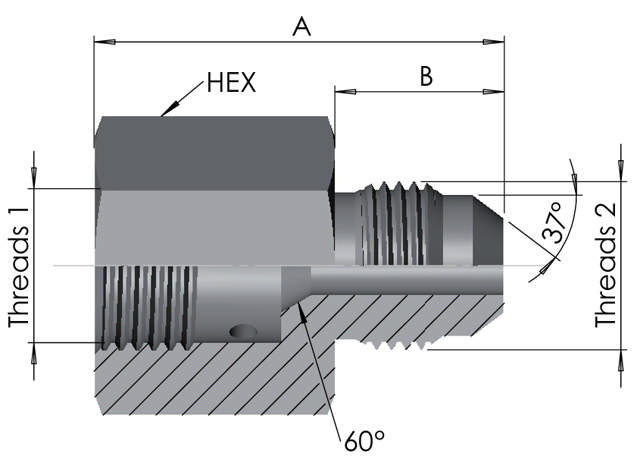

Medium Pressure Female x JIC Male 15K
STANDARD
Medium Pressure and ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | MP Size 1 | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|
| MF83000407316 | 1/4" (04) | 7/16"-20UN | 7/16"-20UN | 32 | 14.5 | 22 | SS316 | 15000PSI | |
| MF83000409316 | 1/4" (04) | 7/16"-20UN | 9/16"-18UN | 34 | 14.5 | 22 | SS316 | 15000PSI | |
| MF83000607316 | 3/8" (06) | 9/16"-18UN | 7/16"-20UN | 34 | 14.5 | 22 | SS316 | 15000PSI | |
| MF83000609316 | 3/8" (06) | 9/16"-18UN | 9/16"-18UN | 36 | 14.5 | 22 | SS316 | 15000PSI | |
| MF83000612316 | 3/8" (06) | 9/16"-18UN | 3/4"-16UN | 40 | 16.5 | 22 | SS316 | 15000PSI | |
| MF83000909316 | 9/16" (09) | 13/16"-16UN | 9/16"-18UN | 42 | 14.5 | 27 | SS316 | 15000PSI | |
| MF83000912316 | 9/16" (09) | 13/16"-16UN | 3/4"-16UN | 43 | 16.5 | 27 | SS316 | 15000PSI | |
| MF83000917316 | 9/16" (09) | 13/16"-16UN | 1 1/16"-12UN | 48.5 | 22 | 30 | SS316 | 15000PSI | |
| MF83001217316 | 3/4" (12) | 3/4"-14NPSM | 1 1/16"-12UN | 54 | 22 | 36 | SS316 | 15000PSI | |
| MF83001221316 | 3/4" (12) | 3/4"-14NPSM | 1 5/16"-12UN | 55 | 23 | 36 | SS316 | 15000PSI | |
| MF83001617316 | 1" (16) | 1 3/8"-12UN | 1 1/16"-12UN | 65 | 22 | 46 | SS316 | 15000PSI | |
| MF83001621316 | 1" (16) | 1 3/8"-12UN | 1 5/16"-12UN | 65 | 23 | 46 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
