Series MF8600 WP 15000PSI

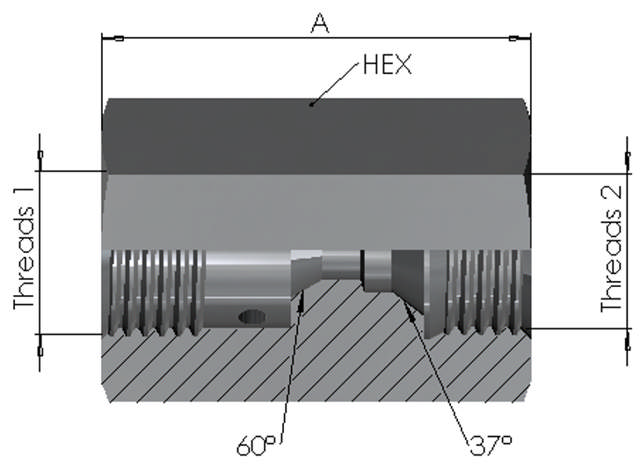

Medium Pressure Female x JIC Female Fixed 15K
STANDARD
Medium Pressure and ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | MP Size 1 | Thread Dim 1 | Thread Dim 2 | A | Hex 1 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|
| MF86000407316 | 1/4" (04) | 7/16"-20UN | 7/16"-20UN | 32 | 19 | SS316 | 15000PSI | |
| MF86000409316 | 1/4" (04) | 7/16"-20UN | 9/16"-18UN | 34 | 22 | SS316 | 15000PSI | |
| MF86000607316 | 3/8" (06) | 9/16"-18UN | 7/16"-20UN | 34 | 22 | SS316 | 15000PSI | |
| MF86000609316 | 3/8" (06) | 9/16"-18UN | 9/16"-18UN | 36 | 22 | SS316 | 15000PSI | |
| MF86000612316 | 3/8" (06) | 9/16"-18UN | 3/4"-16UN | 40 | 27 | SS316 | 15000PSI | |
| MF86000909316 | 9/16" (09) | 13/16"-16UN | 9/16"-18UN | 42 | 27 | SS316 | 15000PSI | |
| MF86000912316 | 9/16" (09) | 13/16"-16UN | 3/4"-16UN | 44 | 27 | SS316 | 15000PSI | |
| MF86000917316 | 9/16" (09) | 13/16"-16UN | 1 1/16"-12UN | 50 | 36 | SS316 | 15000PSI | |
| MF86001217316 | 3/4" (12) | 3/4"-14NPSM | 1 1/16"-12UN | 57 | 36 | SS316 | 15000PSI | |
| MF86001221316 | 3/4" (12) | 3/4"-14NPSM | 1 5/16"-12UN | 60 | 50 | SS316 | 15000PSI | |
| MF86001617316 | 1" (16) | 1 3/8"-12UN | 1 1/16"-12UN | 72 | 46 | SS316 | 15000PSI | |
| MF86001621316 | 1" (16) | 1 3/8"-12UN | 1 5/16"-12UN | 75 | 50 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
