Series MF-MF WP 20000PSI
Medium Pressure Female/Female 20K
STANDARD
Medium Pressure
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

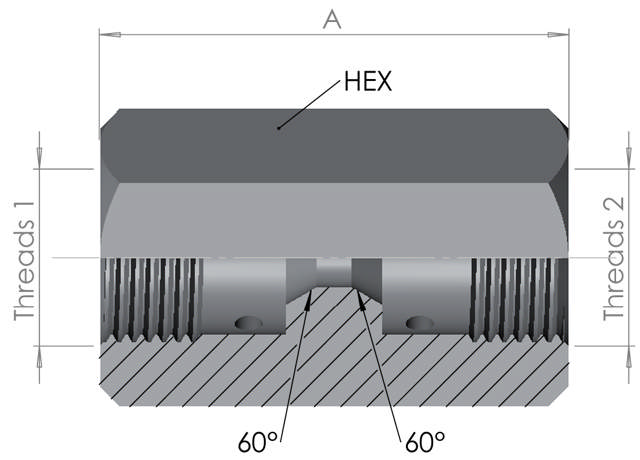

| Product Code | MP Size 1 | MP Size 2 | Thread Dim 1 | Thread Dim 2 | A | Hex 1 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|
| MF04MF04316 | 1/4" (04) | 1/4" (04) | 7/16"-20UN | 7/16"-20UN | 35 | 19 | SS316 | 20000PSI | |
| MF04MF06316 | 1/4" (04) | 3/8" (06) | 7/16"-20UN | 9/16"-18UN | 40 | 22 | SS316 | 20000PSI | |
| MF04MF09316 | 1/4" (04) | 9/16" (09) | 7/16"-20UN | 13/16"-16UN | 45 | 27 | SS316 | 20000PSI | |
| MF06MF06316 | 3/8" (06) | 3/8" (06) | 9/16"-18UN | 9/16"-18UN | 40 | 22 | SS316 | 20000PSI | |
| MF06MF09316 | 3/8" (06) | 9/16" (09) | 9/16"-18UN | 13/16"-16UN | 48 | 27 | SS316 | 20000PSI | |
| MF09MF09316 | 9/16" (09) | 9/16" (09) | 13/16"-16UN | 13/16"-16UN | 50 | 27 | SS316 | 20000PSI | |
| MF09MF12316 | 9/16" (09) | 3/4" (12) | 13/16"-16UN | 3/4"-14NPSM | 58 | 36 | SS316 | 20000PSI | |
| MF09MF16316 | 9/16" (09) | 1" (16) | 13/16"-16UN | 1 3/8"-12UN | 68 | 46 | SS316 | 20000PSI | |
| MF12MF12316 | 3/4" (12) | 3/4" (12) | 3/4"-14NPSM | 3/4"-14NPSM | 60 | 36 | SS316 | 20000PSI | |
| MF12MF16316 | 3/4" (12) | 1" (16) | 3/4"-14NPSM | 1 3/8"-12UN | 78 | 46 | SS316 | 20000PSI | |
| MF16MF16316 | 1" (16) | 1" (16) | 1 3/8"-12UN | 1 3/8"-12UN | 82 | 46 | SS316 | 20000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
