Series MFX WP 20000PSI

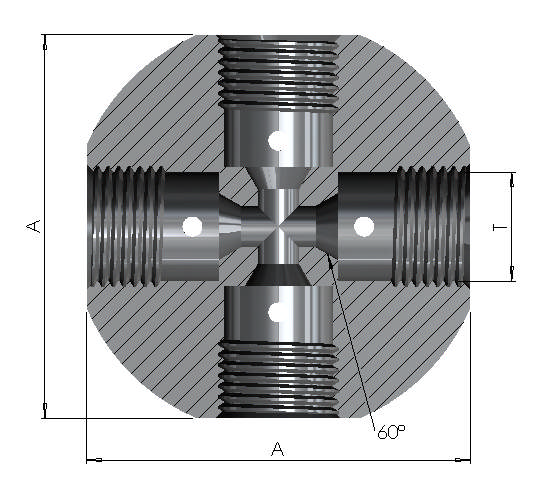

Medium Pressure Female Cross 20K
STANDARD
Medium Pressure
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | MP Size 1 | Thread Dim 1 | A | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|
| MF04X316 | 1/4" (04) | 7/16"-20UN | 38 | SS316 | 20000PSI | |
| MF06X316 | 3/8" (06) | 9/16"-18UN | 46 | SS316 | 20000PSI | |
| MF09X316 | 9/16" (09) | 13/16"-16UN | 60 | SS316 | 20000PSI | |
| MF12X316 | 3/4" (12) | 3/4"-14NPSM | 74 | SS316 | 20000PSI | |
| MF16X316 | 1" (16) | 1 3/8"-12UN | 105 | SS316 | 20000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
