Series MPC WP 20000PSI

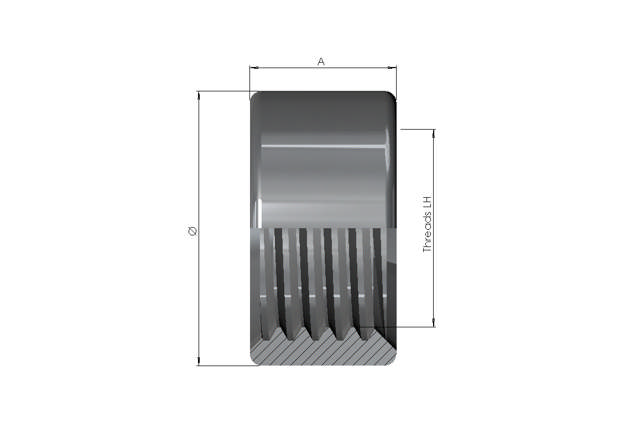

Medium Pressure Collar
STANDARD
Medium Pressure
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | MP Size 1 | Thread Dim 1 | A | OD | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|
| MP04C316 | 1/4" (04) | 1/4"-28UN | 4 | 9 | SS316 | 20000PSI | |
| MP06C316 | 3/8" (06) | 3/8"-24UN | 6.3 | 12 | SS316 | 20000PSI | |
| MP09C316 | 9/16" (09) | 9/16"-18UN | 8.5 | 18 | SS316 | 20000PSI | |
| MP12C316 | 3/4" (12) | 3/4"-16UN | 9.6 | 23.5 | SS316 | 20000PSI | |
| MP16C316 | 1" (16) | 1"-12UN | 12.7 | 31.5 | SS316 | 20000PSI | |
| MP24C316 | 1 1/2" (24) | 1 1/2"-12UN | 12.7 | 44.5 | SS316 | 20000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
