Series HMF-MMF WP 20000PSI

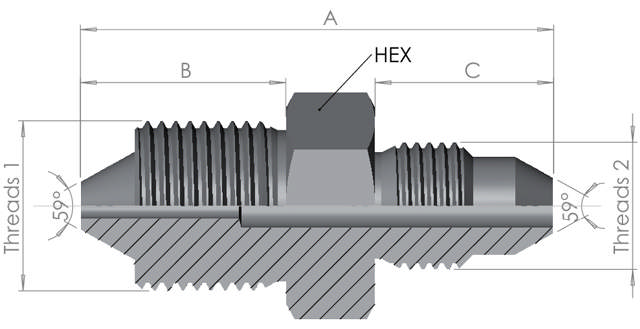

High Pressure Male x Medium Pressure Male 20K
STANDARD
High Pressure
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | MP Size 1 | HP Size 1 | Thread Dim 1 | Thread Dim 2 | A | B | C | Hex 1 | Material Code | Work Pressure | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HMF04MMF04316 | 1/4" (04) | 1/4" (04) | 9/16"-18UN | 7/16"-20UN | 44 | 16 | 18 | 17 | SS316 | 20000PSI | |
| HMF04MMF06316 | 3/8" (06) | 1/4" (04) | 9/16"-18UN | 9/16"-18UN | 46 | 16 | 20 | 17 | SS316 | 20000PSI | |
| HMF04MMF09316 | 9/16" (09) | 1/4" (04) | 9/16"-18UN | 13/16"-16UN | 51 | 16 | 25 | 22 | SS316 | 20000PSI | |
| HMF06MMF04316 | 1/4" (04) | 3/8" (06) | 3/4"-16UN | 7/16"-20UN | 51 | 23 | 18 | 22 | SS316 | 20000PSI | |
| HMF06MMF06316 | 3/8" (06) | 3/8" (06) | 3/4"-16UN | 9/16"-18UN | 53 | 23 | 20 | 22 | SS316 | 20000PSI | |
| HMF06MMF09316 | 9/16" (09) | 3/8" (06) | 3/4"-16UN | 13/16"-16UN | 58 | 23 | 25 | 22 | SS316 | 20000PSI | |
| HMF09MMF04316 | 1/4" (04) | 9/16" (09) | 1 1/8"-12UN | 7/16"-20UN | 55 | 27 | 18 | 30 | SS316 | 20000PSI | |
| HMF09MMF06316 | 3/8" (06) | 9/16" (09) | 1 1/8"-12UN | 9/16"-18UN | 57 | 27 | 20 | 30 | SS316 | 20000PSI | |
| HMF09MMF09316 | 9/16" (09) | 9/16" (09) | 1 1/8"-12UN | 13/16"-16UN | 62 | 27 | 25 | 30 | SS316 | 20000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
