Series 1490

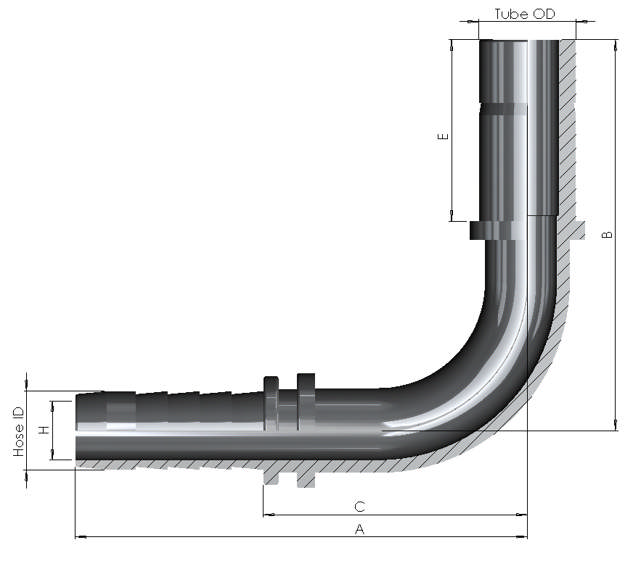

Hose End x Standpipe 90° Metric
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Tube Metric 1 | A | B | C | E | H | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 14900406316 | 1/4" | 6mm | 57 | 43 | 30 | 23 | 4 | SS316 | |
| 14900408316 | 1/4" | 8mm | 57 | 43 | 30 | 23 | 4.5 | SS316 | |
| 14900410316 | 1/4" | 10mm | 57 | 45 | 30 | 25 | 4.5 | SS316 | |
| 14900610316 | 3/8" | 10mm | 64 | 49 | 34 | 25 | 7 | SS316 | |
| 14900612316 | 3/8" | 12mm | 64 | 49 | 34 | 25 | 7 | SS316 | |
| 14900614316 | 3/8" | 14mm | 64 | 54 | 34 | 30 | 7 | SS316 | |
| 14900615316 | 3/8" | 15mm | 64 | 51 | 34 | 27 | 7 | SS316 | |
| 14900812316 | 1/2" | 12mm | 73 | 57 | 42 | 25 | 8 | SS316 | |
| 14900815316 | 1/2" | 15mm | 73 | 59 | 42 | 27 | 10 | SS316 | |
| 14900816316 | 1/2" | 16mm | 73 | 62 | 42 | 35 | 10 | SS316 | |
| 14900818316 | 1/2" | 18mm | 73 | 60 | 42 | 27 | 10 | SS316 | |
| 14900820316 | 1/2" | 20mm | 73 | 70 | 42 | 35 | 10 | SS316 | |
| 14901018316 | 5/8" | 18mm | 88 | 62 | 54 | 27 | 12 | SS316 | |
| 14901020316 | 5/8" | 20mm | 88 | 70 | 54 | 35 | 12 | SS316 | |
| 14901220316 | 3/4" | 20mm | 101 | 82 | 63 | 35 | 15 | SS316 | |
| 14901222316 | 3/4" | 22mm | 101 | 76 | 63 | 29 | 15 | SS316 | |
| 14901225316 | 3/4" | 25mm | 101 | 87 | 63 | 40 | 15 | SS316 | |
| 14901625316 | 1" | 25mm | 124 | 102 | 76 | 40 | 19 | SS316 | |
| 14901628316 | 1" | 28mm | 124 | 92 | 76 | 30 | 19 | SS316 | |
| 14901630316 | 1" | 30mm | 124 | 105 | 76 | 43 | 19 | SS316 | |
| 14902035316 | 1 1/4" | 35mm | 155 | 108 | 100 | 35 | 24 | SS316 | |
| 14902038316 | 1 1/4" | 38mm | 155 | 118 | 100 | 45 | 24 | SS316 | |
| 14902442316 | 1 1/2" | 42mm | 175 | 129 | 117 | 40 | 30 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
