Series 1445

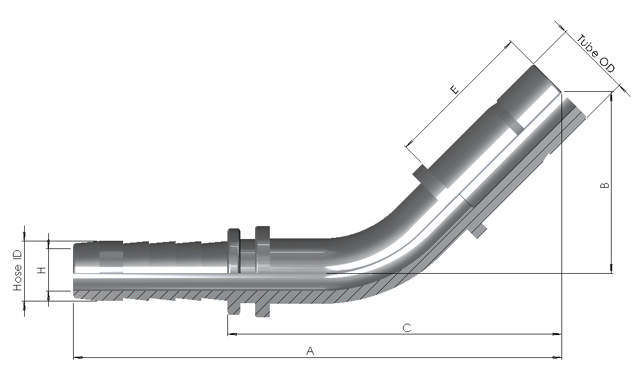

Hose End x Standpipe 45° Metric
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Tube Metric 1 | A | B | C | E | H | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 14450406316 | 1/4" | 6mm | 74 | 24 | 47 | 23 | 4 | SS316 | |
| 14450408316 | 1/4" | 8mm | 74 | 24 | 47 | 23 | 4.5 | SS316 | |
| 14450410316 | 1/4" | 10mm | 76 | 26 | 49 | 25 | 4.5 | SS316 | |
| 14450610316 | 3/8" | 10mm | 86 | 31 | 56 | 25 | 7 | SS316 | |
| 14450612316 | 3/8" | 12mm | 86 | 31 | 56 | 25 | 7 | SS316 | |
| 14450614316 | 3/8" | 14mm | 89 | 34 | 59 | 30 | 7 | SS316 | |
| 14450615316 | 3/8" | 15mm | 87 | 32 | 57 | 27 | 7 | SS316 | |
| 14450812316 | 1/2" | 12mm | 94 | 31 | 63 | 25 | 8 | SS316 | |
| 14450815316 | 1/2" | 15mm | 96 | 33 | 65 | 27 | 10 | SS316 | |
| 14450816316 | 1/2" | 16mm | 98 | 35 | 67 | 35 | 10 | SS316 | |
| 14450818316 | 1/2" | 18mm | 96 | 33 | 65 | 27 | 10 | SS316 | |
| 14450820316 | 1/2" | 20mm | 101 | 38 | 70 | 35 | 10 | SS316 | |
| 14451018316 | 5/8" | 18mm | 109 | 41 | 75 | 27 | 12 | SS316 | |
| 14451020316 | 5/8" | 20mm | 114 | 46 | 81 | 35 | 12 | SS316 | |
| 14451220316 | 3/4" | 20mm | 129 | 48 | 91 | 35 | 15 | SS316 | |
| 14451222316 | 3/4" | 22mm | 126 | 45 | 88 | 29 | 15 | SS316 | |
| 14451225316 | 3/4" | 25mm | 131 | 50 | 93 | 40 | 15 | SS316 | |
| 14451625316 | 1" | 25mm | 158 | 55 | 110 | 40 | 19 | SS316 | |
| 14451628316 | 1" | 28mm | 151 | 48 | 103 | 30 | 19 | SS316 | |
| 14451630316 | 1" | 30mm | 160 | 57 | 112 | 43 | 19 | SS316 | |
| 14452035316 | 1 1/4" | 35mm | 181 | 57 | 126 | 35 | 24 | SS316 | |
| 14452038316 | 1 1/4" | 38mm | 188 | 64 | 133 | 45 | 24 | SS316 | |
| 14452442316 | 1 1/2" | 42mm | 205 | 68 | 148 | 40 | 30 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
